TRR0011: DC Synchronization Attack (DCSync)

Metadata

Technique Overview

Adversaries may attempt to access credentials and other sensitive information by using a Windows Domain Controller’s (DC) application programming interface (API) to simulate the replication process used to keep DCs synchronized. Members of the Administrators, Domain Admins, or Enterprise Admin groups; computer accounts on the DCs; or any Active Directory (AD) account with a specific set of permissions are able to request replication information from any DC that may contain current and historical hashes of potentially useful accounts, such as KRBTGT and Administrators. The hashes can then be used to create a Golden Ticket, in a Pass the Ticket attack, or to change an account’s password.

Technical Background

Production AD domains almost always have more than one DC. This helps ensure resilience against failures and can help ensure low latency to a DC across the network. Changes can be written to the directory on any DC, and those changes are synchronized across all DCs in the domain through a process called “replication.” During replication, a DC will send a request to another DC asking for any changes to domain objects. As DCs replicate regularly with one another, they ensure that all replicas converge to a single common state.

Confidential Attributes

Generally, all objects and attributes in AD are readable by any account in the domain. To accommodate more sensitive information stored in AD attributes, confidential attributes were introduced with Windows 2003 SP1. AD uses confidential attributes to store things like the BitLocker key, password hashes (including a history of password hashes), and potentially cleartext passwords. Confidential attributes are not visible to normal users; there is a ‘confidential bit’ that can be set on an attribute that forces a secondary access check against a “control access right” that is typically held only by administrators (RIGHT_DS_READ_PROPERTY). A control access right is not identified by a specific bit in an access mask as the standard access rights are. Instead, each control access right is identified by a GUID. An access-control entry (ACE) that grants or denies a control access right specifies the RIGHT_DS_CONTROL_ACCESS (CR) bit (0x100) in the ACCESS_MASK field and the GUID identifying the particular control access right in the ObjectType field. Most of the attributes holding sensitive credential information will never grant read access¹, but they are included in replication data (by necessity). Thus, an attacker can gain access to those attributes only by emulating another DC and requesting replication.

Replication Permissions

Replication permissions are in the category of special AD “extended rights”² that are a group of special operations not covered by the standard set of rights (these are control access rights, as discussed above). The specific permissions that allow a user to request replication are:

These rights are granted by default to members of the Administrators, Domain Admins, or Enterprise Admin groups; they are also given to the system accounts (ending in $) on the DCs. They can also be granted to any other account in the domain.

Replication Process

DC replication takes place using the Directory Replication Services Remote (MS-DRSR) protocol, which is implemented using the Distributed Computing Environment/Remote Procedure Call (DCE/RPC) protocol. The MS-DRSR protocol is designed for replication and management of data in AD and specifies two separate interfaces: drsuapi and dsaop. Only drsuapi is relevant to DCSync.

MS-DRSR allows transport via TCP and associates the drsuapi interface with the UUID {e3514235-4b06-11d1-ab04-00c04fc2dcd2} (which is represented in hex in network packets as 35 42 51 e3 06 4b d1 11 ab 04 00 c0 4f c2 dc d2).

A client wishing to perform a DCSync attack would first connect to a DC via the DCE/RPC protocol (which itself is implemented using TCP) and request a bind to the drsuapi interface – see packet no. 4 below. They would then call the DsBind remote procedure (opnum 0) as a mandatory first step to calling any other procedure in the interface – see packet no 9. The next step is to call the DsGetNCChanges remote procedure (opnum 3) – see packet no 17. The protocol encrypts the payloads of both the request and response data, but the headers – showing what remote procedure is being called – are unencrypted.

Background on DCE/RPC

DCE/RPC is an industry standard for making remote procedure calls. Microsoft’s implementation of DCE/RPC is called MSRPC. DCE/RPC can use various transports: ncacn_np (transport via SMB Named Pipes); ncacn_ip_tcp (transport via TCP/IP) and ncacn_http (transport via HTTP), to name a few. Microsoft defines numerous operating system protocols that use RPC. Each interface comes with its own set of numbered procedures (opnums), and procedures are called by opnum rather than name. The DCE/RPC protocol requires an initial bind request (packet type 0x0b), where the desired RPC protocol is specified by its assigned UUID. After binding to a protocol, clients call a specific procedure within the protocol.

By way of example, services can be managed remotely via the Service Control Manager Remote Protocol (MS-SCMR), which permits transport via both TCP and named pipes. When using TCP, the DCE/RPC bind packet will specify the protocol’s UUID of {367ABB81-9844-35F1-AD32-98F038001003}, and when using named pipes, it will connect to the protocol’s designated pipe \PIPE\svcctl.

Windows Event Logging

AD DCs can be configured³ to log attempts to access AD objects (it can be configured to log success, failure, or both). This will generate event 4662 (An operation was performed on an object). Replication is performed on an object of the DomainDNS class in AD (this is the object that represents the root of the directory). The DomainDNS class is represented in AD and its logs with the GUID 19195a5b-6da0-11d0-afd3-00c04fd930c9. Thus, logs showing access to an AD object (Event 4226) will show access to the DomainDNS class. If the request was successful, they will also show an access mask with the RIGHT_DS_CONTROL_ACCESS (CR) bit set (0x100 or decimal 256) and the GUID of the specific replication privilege used in the request (DS-Replication-Get-Changes, for example).

Here is an example log showing domain replication:

"Provider Name": "Microsoft-Windows-Security-Auditing"
"EventID": "4662"
"SubjectUserName": <Hostname of machine requesting replication>
"SubjectDomainName": <Domain where replication occurred>
"ObjectServer": "DS"
"ObjectType": "%{19195a5b-6da0-11d0-afd3-00c04fd930c9}" 🡨 This is the GUID for the DomainDNS Class
"OperationType": "Object Access"
"AccessMask": "256"    🡨 this is RIGHT_DS_CONTROL_ACCESS (0x100)
"Properties": "%%7688\\r\\n\\t\\t{1131f6aa-9c07-11d1-f79f-00c04fc2dcd2}\\r\\n\\t{19195a5b-6da0-11d0-afd3-00c04fd930c9}\\r\\n"   🡨 This is CONTROL_ACCESS (%%7688) using the permission DS-Replication-Get-Changes on the DomainDNS class object.

Procedures

Procedure A: Request replication from a DC

This is the only known procedure for a DC replication attack. An attacker who gains access to an account with the required permissions calls the IDL_DRSGetNCChanges RPC to request replication for as many accounts as desired. The DC replies by sending the requested data.

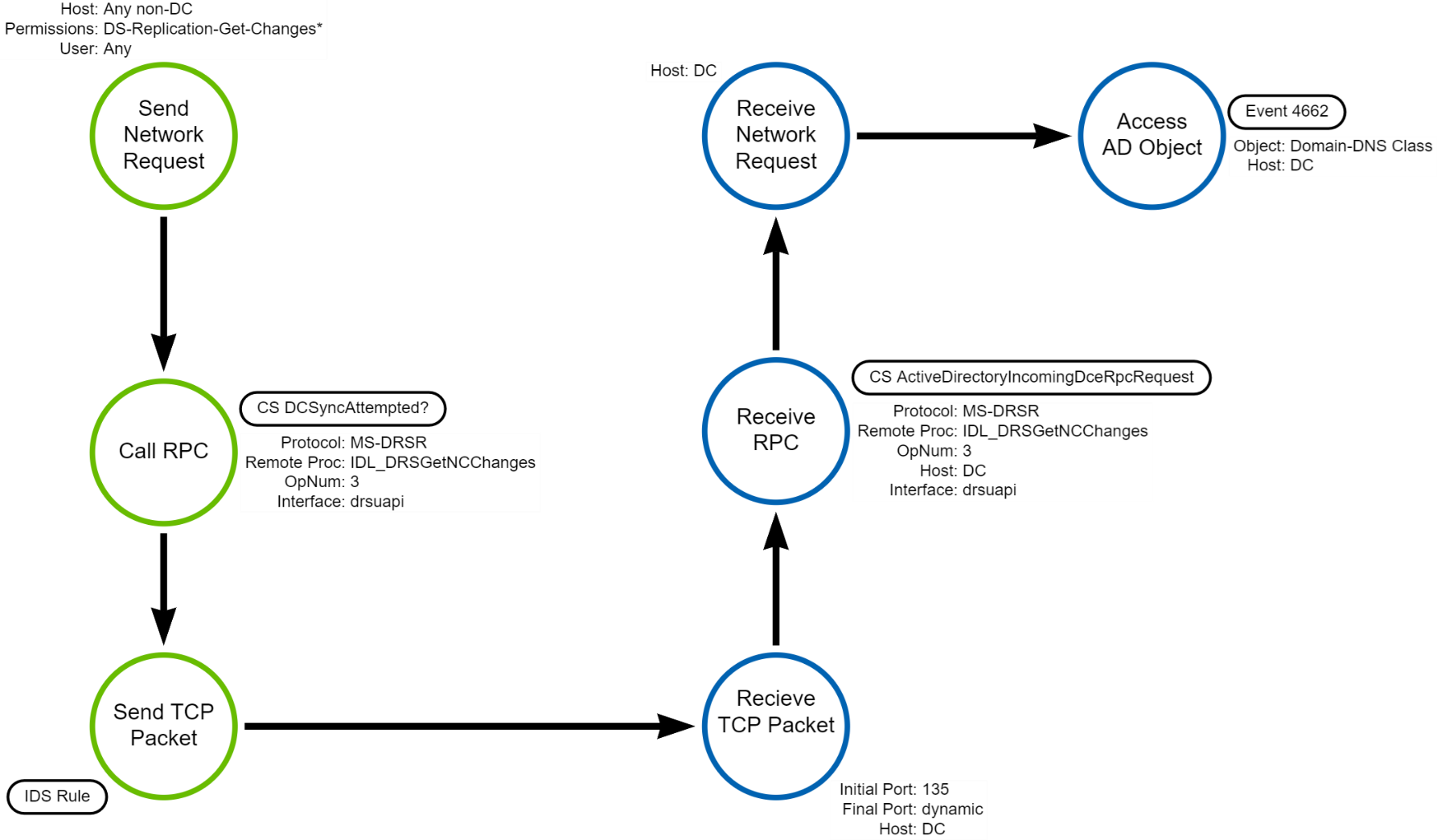

Detection Data Model

There are multiple great options for detecting this technique. Only a DC should ever request replication from a DC, so a request from other machines is almost certainly malicious. Replication requests can be identified on the network (using an IDS rule), with an EDR event, or using Windows event 4662 (example in the logging section). Any of these options can provide comprehensive coverage of this technique.

Available Emulation Tests

References

• What is DCSync - Netwrix Blog
• MS-DRSR Protocol - Microsoft Learn
• Mimikatz DCSync - ADSecurity.org
• Detecting DCSync - Black Lantern Security
• IDL_DRSGetNCChanges - Microsoft Learn
• Passwords technical overview - Microsoft Learn
• Detecting DCSync and DCShadow Network Traffic - NVisio Blog
• Windows Event Accesses IDs - Lee Harvey Blog (via Wayback Machine)
• The Other Replicating Directory Changes - Eric Kuehn
• ADS_RIGHTS_ENUM - Microsoft Learn
• Criminal Actor Targeting Organizations for Data Exfil and Destruction - Microsoft
• Earth Lusca Operations - TrendMicro
• Analysis of Intrusion Campaign Targeting Telecom and BPO Companies - Crowdstrike
• Operation Wocao - FoxIT
• Using M365 Defender to Protect Against Solorigate - Microsoft
• Deep Dive into Solorigate - Microsoft
• Observations from the StellarParticle Campaign - Crowdstrike
