TRR0012: Kerberos AS-REP Roasting

Metadata

Technique Overview

Adversaries may reveal credentials of accounts by cracking encrypted portions of Kerberos’ Authentication Server messages. Each of the encrypted messages has a known structure, which can serve as a crib¹ for use in determining when the correct password has been attempted.

This attack is similar to T1558.003 Kerberoasting. Kerberoasting attempts to crack cipher texts from TGS tickets, while AS-REP roasting attempts to crack cipher texts from Authentication Server messages.

Any valid domain account can be used to list all domain accounts that have pre-authentication disabled by querying the directory via standard means (like LDAP, for example). Alternatively, the adversary may send an Authentication Server Request (AS-REQ) message for each user. If the DC responds without errors, the account does not require pre-authentication and the Authentication Server Reply (AS-REP) message will already contain the encrypted data.

Technical Background

The Kerberos Protocol

Kerberos is a network authentication protocol designed to provide strong authentication for client/server applications by using symmetric key cryptography to sign ’tickets’ that a client can use to prove their identity and authorization to access a network resource. The Kerberos protocol consists of 3 components (hence the name, which references the 3-headed dog of Greek mythology):

• Client
• Application Server (AP)
• Key Distribution Center (KDC)

The client is the user who wants access to a network resource. The AP is the server hosting the desired network resource. The KDC is the authoritative source of information about users and what resources they are authorized to access. In Windows domains, the domain controllers are also the Kerberos KDC.

The KDC is also comprised of 3 elements. While these can be distributed over multiple servers, most modern implementations have them on the same server:

• An authentication server (AS) that performs the initial authentication.
• A ticket-granting server (TGS) that issues tickets to clients for specific services hosted on APs.
• A Kerberos database that stores the password and identity of all verified users.

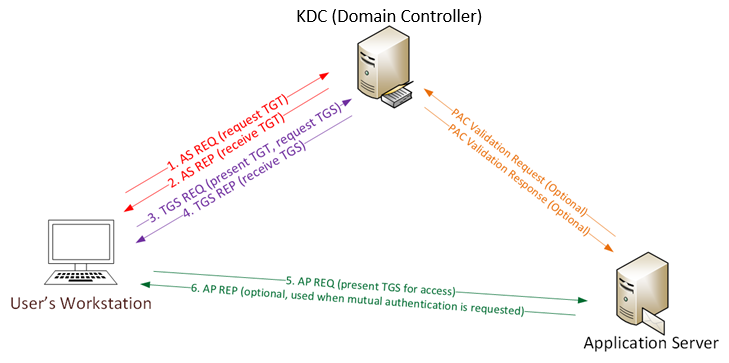

The Kerberos protocol defines a series of messages exchanged between the client, the KDC and AP. After a client has authenticated, they receive a Ticket Granting Ticket (TGT) that is stored on the client device and can be used to request access to specific network resources without having to reauthenticate. The client presents a TGT to the TGS when it requests access to a network resource, and the TGS provides a service ticket back to the client. The client can then provide the service ticket to the AP to gain access to the service.

Kerberos is stateless: it relies on cryptographically signed tickets for authentication and authorization. This requires that the cryptographic keys are known only by the key’s owner and the KDC. There are a few different keys used for these cryptographic signatures:

• TGTs are signed with the password hash of the KRBTGT account, which is a special service account that represents the KDC in the directory.
• Service tickets are signed with the hash of the service account associated with a given service (a CIFS share, an FTP server, etc). In the directory, services are represented by a service principal name (SPN) connected to the associated service account. The password of the service account should be known only by the KDC and the service.
• Clients prove their identity by signing a timestamp with their own password hash, which should be known only by the KDC and themselves.

The Kerberos protocol was originally designed in the 1980’s and is on version 5. It is employed in use cases far beyond what was originally envisioned and has had dozens of extensions added to it to enable those use cases. As a result, it is a very complex protocol. What follows is a simplified summary; you can find more in-depth descriptions online.²³⁴

1. AS-REQ: The client authenticates to the AS with a username and password. By default in a Windows domain, pre-authentication data is also included in the form of a current timestamp encrypted with the user’s secret key (derived from the windows password).

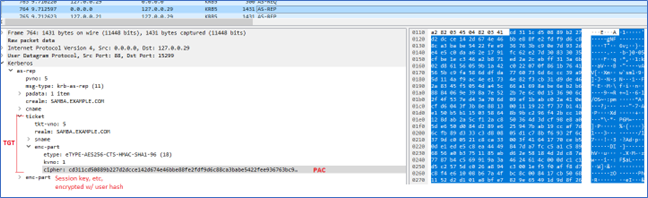

2. AS-REP: The KDC validates the client’s credentials, then sends back a TGT. The TGT contains the Privilege Attribute Certificate (PAC), which includes the symmetric user session key that is used in subsequent steps to encrypt communications with the KDC. The TGT also contains the username that it was issued for and an expiration timestamp. Note that the client cannot read the encrypted portions of the TGT because it does not have the KDC’s encryption key. The AS-REP also contains the session key and expiration time encrypted with the user’s hash, which the client can read. At this point, the client has a session key that it decrypted using the user’s secret key and the TGT (which contains the same session key, encrypted with the KDC’s secret key). In the image below, you can see an AS-REP message, with the TGT (the ticket section), PAC (the ticket->enc-part section), and data encrypted with the user’s key (the enc-part section).

3. TGS-REQ: When the client wants access to a specific resource, it presents the TGT to the KDC’s Ticket Granting Service (TGS) in a message that also contains the SPN of the service it wants to access. The request is encrypted using the user’s session key, obtained from the AS-REP message earlier.
4. TGS-REP: The KDC opens the TGT and validates the PAC checksum. If successful, it proceeds to create a Service Ticket that contains the PAC. A symmetric key is generated for use between the client and the requested service (the service session key). The Service Ticket is encrypted with the service’s password hash. The Service Ticket and the service session key are encrypted a second time using the user’s session key and sent to the client.
5. AP-REQ: Client decrypts the Service Ticket and service session key from the TGS-REP message and sends the Service Ticket to the server hosting the desired resource. The client also includes an authenticator message generated by the client and encrypted with the service session key.
6. The Application Server decrypts the Service Ticket (using its own password hash) and extracts the service session key. It then decrypts the authenticator using the service session key. The Application Server extracts the PAC from the Service Ticket and grants the client access to the resource.
7. AP-REP (optional): If mutual authentication is needed, it can send back an optional AP-REP message.
8. PAC Validation: If the TGT is older than 20 minutes, the AP will send a PAC Validation message to the KDC to verify that the PAC’s information is valid.

Roasting AS-REQ and AS-REP Messages

Adversaries may attempt to guess the password of an account by cracking the portions of an AS-REQ or AS-REP message that are encrypted with the user’s password hash. Each of the encrypted messages has a known structure, which can serve as a crib for determining when the correct password has been attempted. Cracking the password can be easier if a weak encryption algorithm is used, like RC4.

If pre-authentication is not required, any domain user can request a TGT for any other domain user, because it is assumed the session key (which is provided in the AS-REP message and encrypted with the user’s password hash) cannot be accessed except by the user to whom the TGT has been issued. Without the session key, the TGT cannot be used to request a TGS (the TGS-REQ message must be encrypted with the session key). AS-REP roasting takes advantage of this by requesting TGTs for other users, but instead of attempting to use the TGT the attacker collects the encrypted data and attempts to brute force the user’s password.

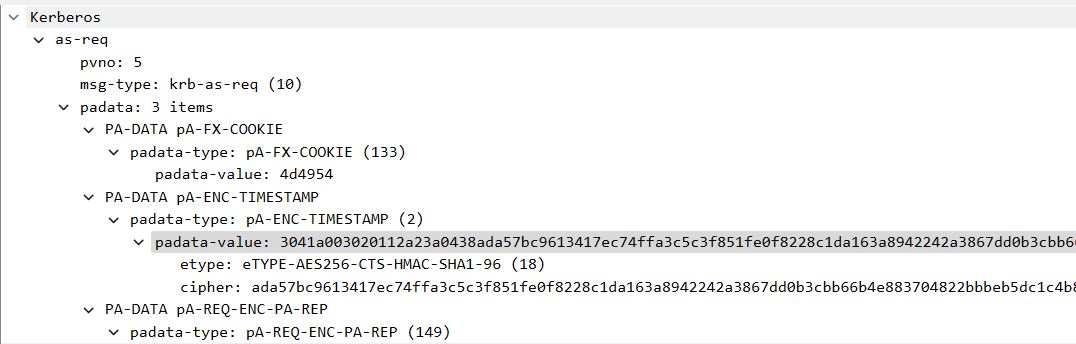

When pre-authentication is required, the client must include a timestamp encrypted with their password hash in the AS-REQ message. When the KDC correctly decrypts the timestamp, it proves the client is who they claim to be. Pre-authentication makes it more difficult for an attacker to collect AS-REP messages for users, because they can’t request a TGT without first verifying they know the client’s password.

Preventing AS-REP Roasting

AS-REP roasting can be prevented by requiring pre-authentication for all accounts (the default on Windows domains), using strong encryption for Kerberos tickets, and requiring strong passwords. As a brute force attack, this technique can be rendered almost entirely ineffective by uncrackable passwords.

Logging

Windows has two logs that are relevant to the process of requesting a Kerberos TGT:

• Event 4771 - Kerberos pre-authentication failed (logged on failure).
• Event 4678 - A Kerberos authentication ticket (TGT) was requested (logged on success and failure).

The field Pre-Authentication Type indicates what kind of pre-auth data was provided (if any). 0 indicates that no pre-auth data was provided.

When pre-authentication fails, the field Result Code (Failure Code in 4771 events) contains a hex value that indicates what caused the failure. KDC_ERR_PREAUTH_REQUIRED is 0x19.

Finally, the field Encryption Type indicates the encryption algorithm used to encrypt the ticket. There are numerous options defined by IANA⁵, the most common are 0x17 and 0x18 for RC4, and 0x11 through 0x14 for AES.

Additionally, to gain more visibility into potential enumeration, a SACL⁶ could be set on accounts that don’t require pre-authentication. This would generate an Event 4662 every time the accounts were read in the directory. It could be potentially noisy, but could provide additional telemetry.

CrowdStrike has two logs relevant to TGT requests:

• ActiveDirectoryAuthentication
• ActiveDirectoryAuthenticationFailure

In both cases, the ActiveDirectoryAuthenticationMethod field will be 0 for Kerberos. The ActiveDirectoryAuthentication event does not have a field indicating if pre-auth data was provided, and as such is less useful than Windows event 4678 for this technique. The ActiveDirectoryAuthenticationFailure has a KerberosErrorCode field that contains the same Result Code information as Windows event 4771, but it shows the value in decimal instead of hex, so KDC_ERR_PREAUTH_REQUIRED is decimal 25

Procedures

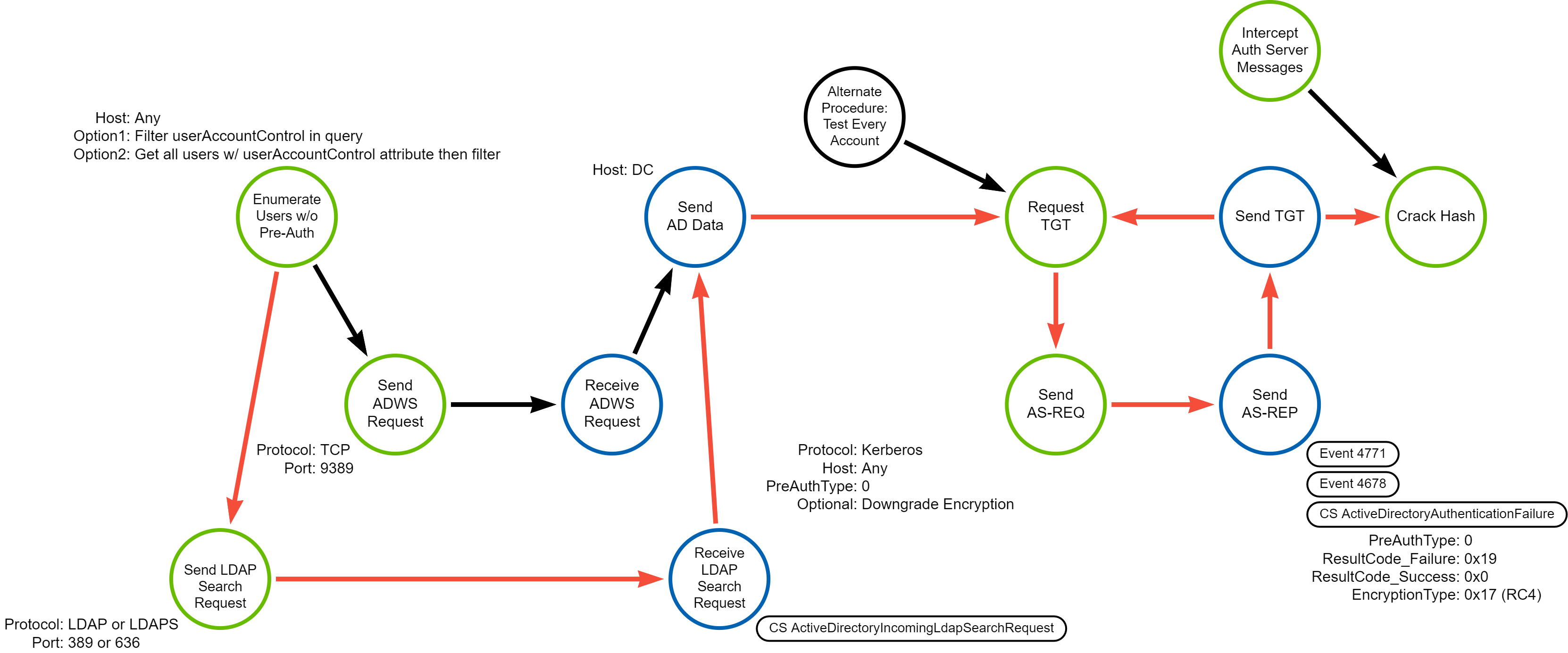

Procedure A: Enumerate Accounts Lacking Pre-Authentication via LDAP

An attacker can identify accounts without pre-authentication requirements by querying the directory via LDAP and checking the userAccountControl⁷ attribute, which is a bitmask⁸ of flags. Accounts that do not require pre-auth will have the ADS_UF_DONT_REQUIRE_PREAUTH (0x400000) bit set. This can be queried via LDAP with the following filter (0x400000 = 4194304 decimal, and 1.2.840.113556.1.4.803 is the OID in LDAP for a bitwise AND operation⁹):

(userAccountControl:1.2.840.113556.1.4.803:=4194304)

Detection Data Model

This is the best-known procedure. The LDAP search request is a great opportunity to detect it if telemetry is available, otherwise the next opportunity is likely the point where TGTs are requested for many accounts lacking pre-auth. It should be unusual for one source to request TGTs for many other accounts, especially if those accounts all don’t require pre-authentication.

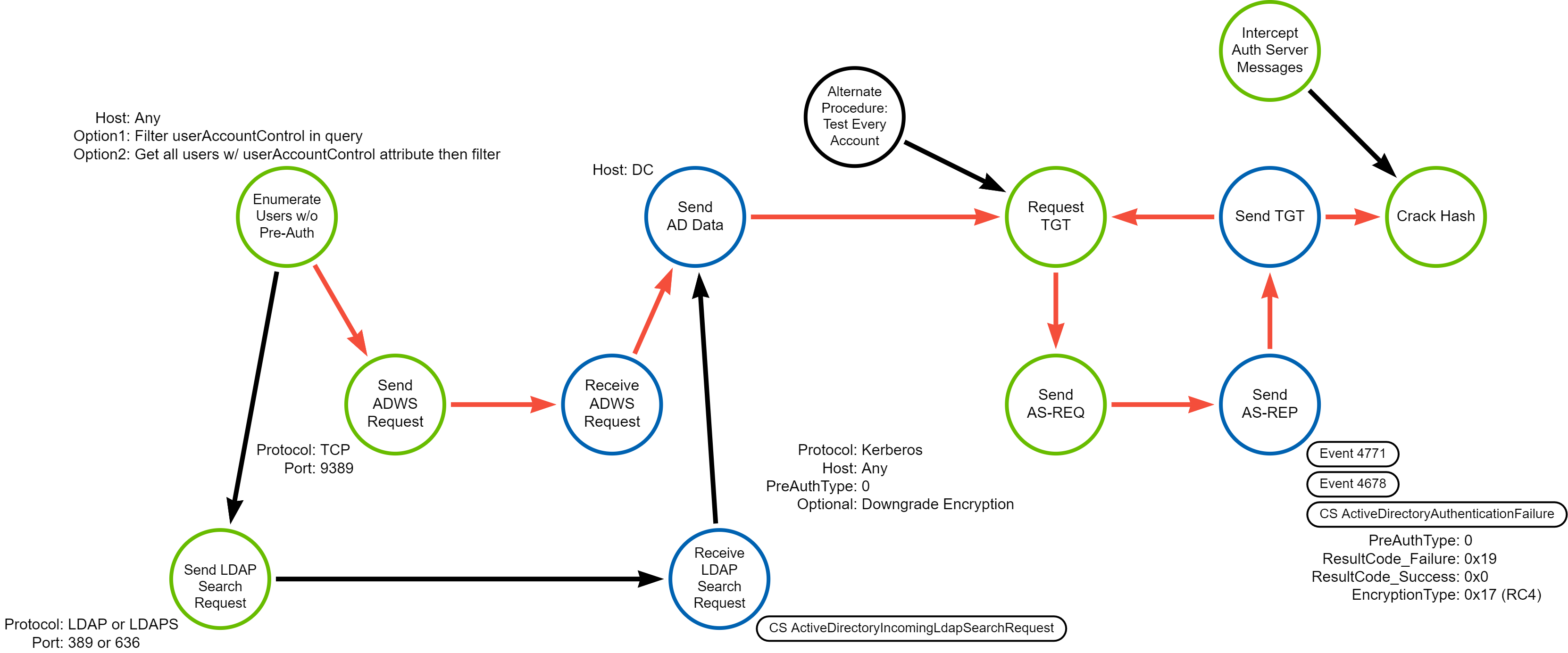

Procedure B: Enumerate Accounts Lacking Pre-Authentication via ADWS

This procedure is very similar to procedure A, except it uses ADWS to query the directory instead of LDAP. An attacker would still query the userAccountControl field for ADS_UF_DONT_REQUIRE_PREAUTH.

The Active Directory PowerShell module, which uses ADWS, expands the userAccountControl attribute and adds a DoesNotRequirePreAuth property to the user object that can be used in filters. This will be set to “True” if pre-authentication is not required for the account, otherwise it will be “False.” It can be queried with the following command:

Get-ADUser -Filter { DoesNotRequirePreAuth -eq $true } -Properties DoesNotRequirePreAuth | select SamAccountName,DoesNotRequirePreAuth

Detection Data Model

Unfortunately, at the time of writing there isn’t good telemetry for ADWS queries, removing that identification opportunity. The best opportunity for identifying this procedure is at the point where multiple TGTs are requested for accounts lacking pre-auth requirements.

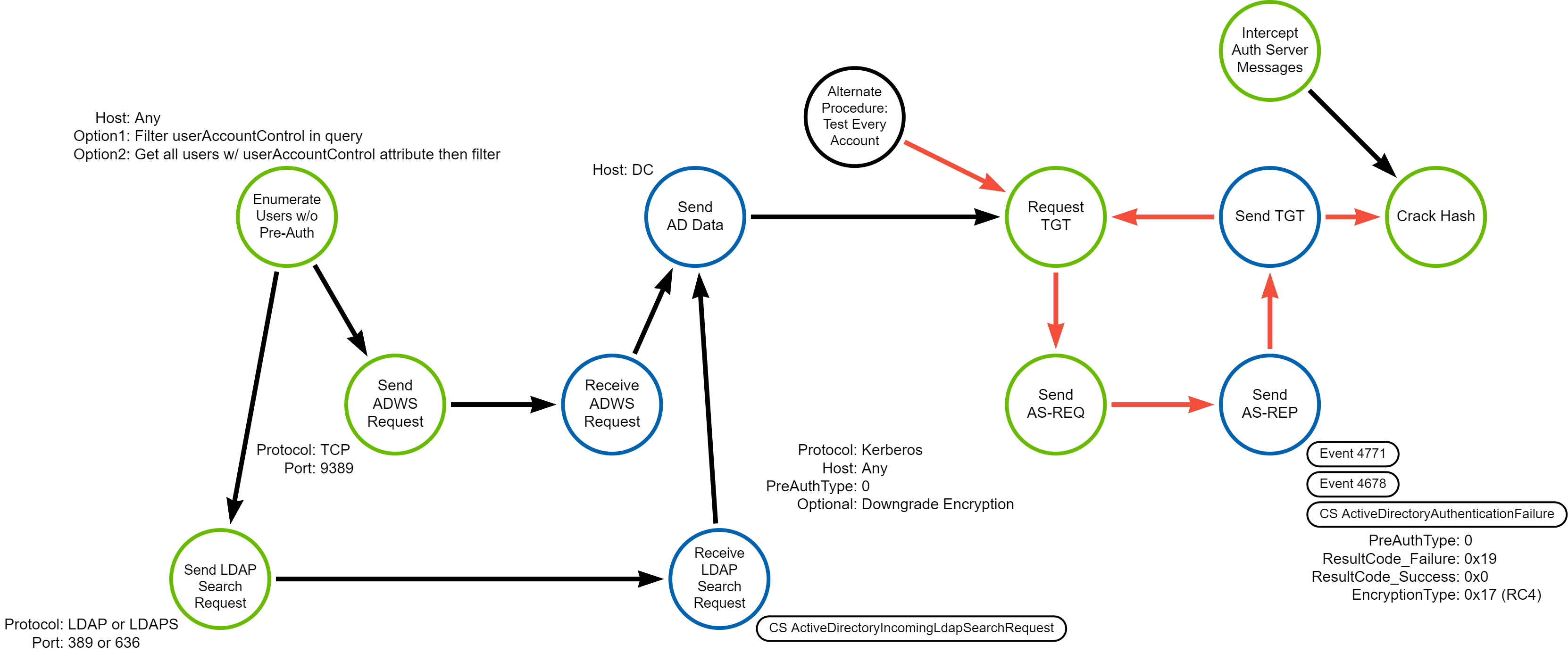

Procedure C: Test All Accounts for Pre-Authentication Status

If an AS-REQ message doesn’t contain the required pre-auth data, the KDC will reply with a KDC_ERR_PREAUTH_REQUIRED error message.¹⁰ An attacker could skip enumerating accounts and simply test all accounts for pre-authentication by sending a TGT request that lacks pre-auth data. If they get an error back, they know the account requires pre-authentication, and if it doesn’t they will get back an AS-REP message.

Detection Data Model

This procedure is distinguished by skipping enumeration, but instead involves many TGT requests that get back KDC_ERR_PREAUTH_REQUIRED errors, which provides the best opportunity to identify it. Windows clients provide pre-authentication information by default, but Linux clients may or may not, so depending on the environment KDC_ERR_PREAUTH_REQUIRED errors might be rare.

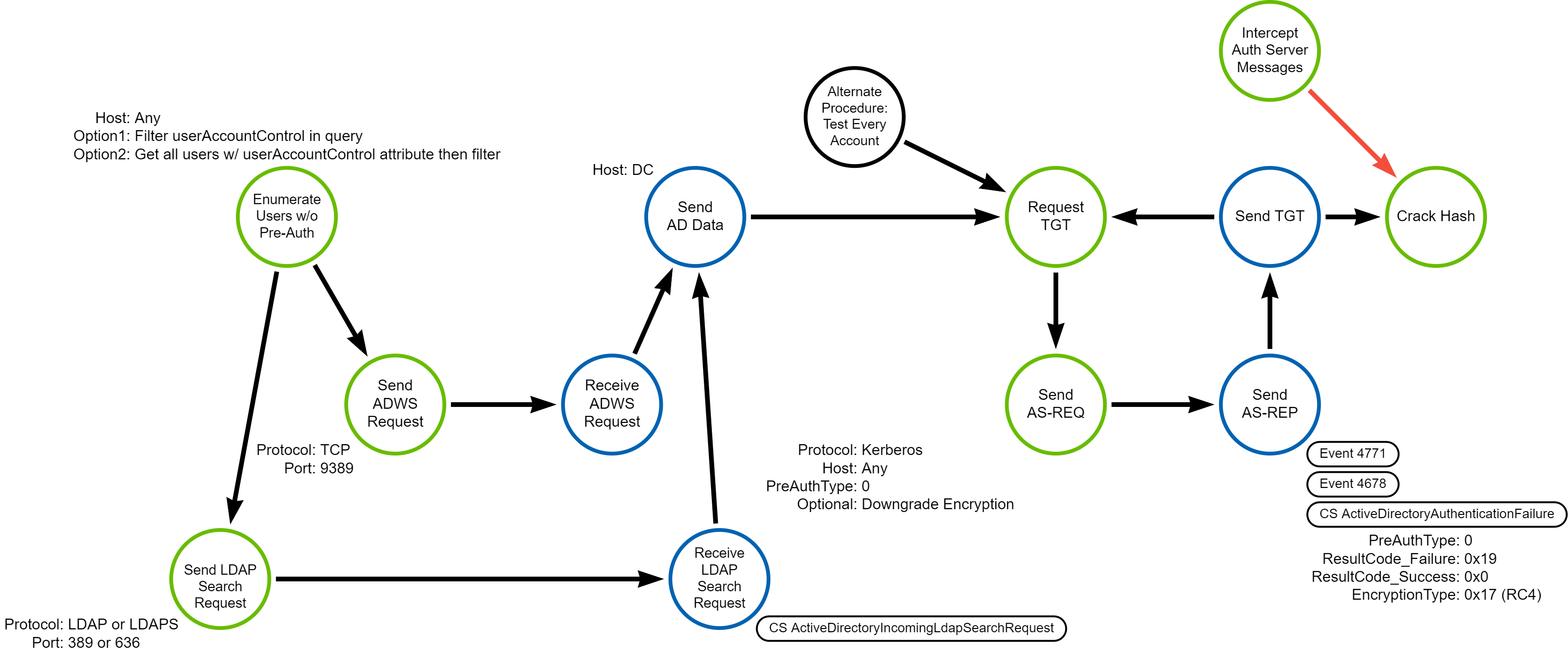

Procedure D: Intercept AS Messages on the Network

If there are no accounts that lack pre-authentication, or as an alternative to actively requesting a TGT, an attacker can collect AS-REQ and AS-REP messages by capturing network traffic between the client and the KDC. Depending on their position in the network, this may limit the number of accounts they could attempt to crack, but it would also eliminate many detection options and allow them to attempt to AS-REP roast even if all accounts required pre-authentication. An attacker might take this route if they know the password policy or encryption algorithm is weak and anticipate being able to crack passwords easily.

Detection Data Model

The DDM makes it clear that there aren’t any great opportunities to detect this procedure if an attacker has established a man-in-the-middle position that permits harvesting network packets.

Available Emulation Tests

References

• Introduction to Kerberos - Echo_Slow
• AS-REQ Roasting from a Router - Devin Boyle
• AS-REP Roasting - Mitre ATT&CK
• Impacket GetNPUsers.py - GitHub
• Kerberos v5 Protocol - Robert Broeckelmann
• Kerberos Wireshark Captures - Robert Broeckelmann
• Event 4768 - Microsoft Learn
• Event 4771 - Microsoft Learn
• Rubeus Roast.cs - GitHub
