TRR0014: Rogue Domain Controller (DCShadow)

Metadata

Technique Overview

Adversaries may register a rogue domain controller (DC) to enable manipulation of Active Directory (AD) data. This attack has been coined as “DCShadow.” Controlling a rogue DC allows an attacker to manipulate AD data, including objects and schemas, to establish persistence or evade defenses. A DCShadow attack requires Domain or Enterprise Admin privileges, and enables many other AD-related attacks, like SID History Injection (T1134.005) or granting users highly privileged rights. Changes to Active Directory objects are logged only by the DC that originates them, so a change made via a rogue DC is not logged (the attacker-controlled DC will not generate and forward a log, but the legitimate DCs receiving the changes via replication will not log it, either). This makes a DCShadow attack an attractive option for establishing long-term access to a compromised domain.

Technical Background

The goal of an attack with a rogue DC is to identify the minimal set of changes required in the directory to inject a new participant into the replication process. This allows the attacker to create, delete, or modify any and all objects in the directory without generating the logs that would normally record such changes. Inserting a rogue DC into the directory requires a high level of privilege, so this is not a privilege escalation attack. This technique can be used to enable many other attack techniques while evading defenses in place to detect them and would likely be employed to establish long term persistence in a compromised Active Directory domain.

Active Directory Concepts

Following are some key AD concepts that play a pivotal role in this technique.

Service Principal Names (SPNs)

A service principal name (SPN) is a unique identifier of a service instance. Kerberos authentication uses SPNs to associate a service instance with a service sign-in account. The service’s sign-in account will contain the password hash used for Kerberos authentication to that service. Before a client can use an SPN to authenticate to an instance of a service, the SPN must be registered as a property on the user or computer account in the directory that the service instance will use to log on. Adding an SPN requires write permissions to the object in Active Directory.

An SPN consists of two or three parts, each separated by a forward slash (’/’). The first part is the service class, the second part is the host name (with an optional port), and the third part (if present) is the service name. For example, the LDAP service on a DC named DC-01 in the Fabrikam.com domain would use the SPN ldap/dc-01.fabrikam.com/fabrikam.com; ldap is the service class name, dc-01.fabrikam.com is the host name, and fabrikam.com is the service name. With a port specified, it would be ldap/dc-01.fabrikam.com:389/fabrikam.com.

A client wishing to connect to a service in the domain will compose the SPN for the desired service, then request a Kerberos ticket granting access to that service. If the client has permission to access the service, the Kerberos protocol ensures that the necessary information and session key are provided to both the client and the service to allow for mutual authentication.

There are two SPNs required for Active Directory replication:

• The DRS service class (which has the well-known GUID E3514235–4B06–11D1-AB04–00C04FC2DCD2 for its service class; this GUID is also associated with the drsuapi RPC interface)

• The Global Catalog service class (which has the string GC/ for its service class)

A writable DC will require both SPNs, while a read-only DC only needs the Global Catalog SPN. This is because the DRS SPN is used for outbound replication, while the Global Catalog one is use for inbound replication. (More information on outbound and inbound replication in the section on Active Directory replication below.)

Below is an example of the SPNs registered for a DC in a vanilla lab environment:

Registered ServicePrincipalNames for CN=WIN-DC,OU=Domain Controllers,DC=mylab,DC=local:

 ldap/WIN-DC/ForestDnsZones.mylab.local
 HOST/WIN-DC/mylab.local
 ldap/WIN-DC/DomainDnsZones.mylab.local
 GC/WIN-DC/mylab.local
 ldap/WIN-DC/mylab.local
 HOST/WIN-DC/MYLAB
 ldap/WIN-DC/MYLAB
 Dfsr-12F9A27C-BF97-4787-9364-D31B6C55EB04/WIN-DC.mylab.local
 ldap/WIN-DC.mylab.local/ForestDnsZones.mylab.local
 ldap/WIN-DC.mylab.local/DomainDnsZones.mylab.local
 DNS/WIN-DC.mylab.local
 GC/WIN-DC.mylab.local/mylab.local
 RestrictedKrbHost/WIN-DC.mylab.local
 RestrictedKrbHost/WIN-DC
 HOST/WIN-DC.mylab.local/MYLAB
 HOST/WIN-DC
 HOST/WIN-DC.mylab.local
 HOST/WIN-DC.mylab.local/mylab.local
 ldap/WIN-DC.mylab.local/MYLAB
 ldap/WIN-DC
 ldap/WIN-DC.mylab.local
 ldap/WIN-DC.mylab.local/mylab.local
 RPC/9a2687db-af1e-439d-af77-c6a4ff8b406b.\_msdcs.mylab.local
 E3514235-4B06-11D1-AB04-00C04FC2DCD2/9a2687db-af1e-439d-af77-c6a4ff8b406b/mylab.local
 ldap/9a2687db-af1e-439d-af77-c6a4ff8b406b.\_msdcs.mylab.local

Active Directory Replication

Enterprise Active Directory domains almost always have more than one DC. This helps ensure resilience against failures and can help provide low latency to a DC across the network. Changes can be written to the directory on any writable DC (it’s possible to create a read-only DC), and those changes are synchronized across all DCs in the domain through a process called “replication.” During replication, one DC will send a request to another DC (it’s ‘replication partner’) asking for any changes to domain objects. As DCs replicate regularly with one another, they ensure that all DCs (or ‘replicas’) converge to a single common state.

Replication Topology

The specific details of how DCs will replicate with one another is called the “replication topology”¹. The replication topology is generated by the Knowledge Consistency Checker (KCC), a replication component that runs as an application on every DC and communicates through the distributed Active Directory database. The KCC functions by reading configuration data and reading and writing connection objects in the local Active Directory database (i.e. the replica on the DC on which it runs). For most of its operation, the KCC that runs on one DC does not communicate directly with the KCC on any other DC. Rather, all KCCs use the knowledge of the common, global data that is stored in the configuration directory partition as input to the topology generation algorithm to converge on the same view of the replication topology. The KCC communicates with other KCCs only to make a remote procedure call (RPC) request for replication error information. The KCC uses the error information to identify gaps in the replication topology. A request for replication error information occurs only between DCs in the same site.

The objects that are read or written by the KCC are:

1. The Server objects in the Sites container that represent each replication participant. Each DC in the forest has a corresponding server object in the Sites container.

2. An NTDS Settings object (class nTDSDSA) object. Each server object in the Sites container must have a child NTDS Settings object that contains information about the server as a replication partner.

3. Connection objects (class nTDSConnection). These objects are children of the NTDS Settings object and define a one-way, inbound connection from another DC (the replication source, or ‘replication partner’). All of a given DC’s replication partners (the DC’s that it will request replication data from) will be defined as connection objects under the DC’s NTDS Settings class in the configuration partition.

The KCC generates the replication topology by creating a list of all the replication servers in the site (there MUST be a server object with an NTDS Settings object in the Site container of the configuration partition for the KCC to include a server as a replication participant). The KCC then connects those servers in a ring. From the perspective of a single KCC process (running on one DC in the domain), the KCC will create a connection object for each neighboring server in the ring (if one doesn’t already exist).

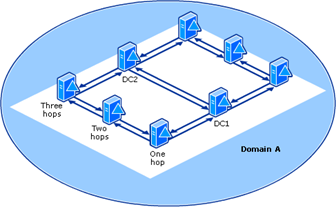

Finally, the KCC mandates that each DC be no more than 3 hops from all other DCs. If there are paths that exceed 3 hops, the KCC will add additional optimizing connections² until all DCs are within the minimum-hop requirement. The image shows a theoretical example of the replication topology developed for a domain with 8 DCs, requiring two optimizing connections (optimizing connections are one-way, so the link between DC2 and DC1 represents two optimizing connections).

Outbound and Inbound Replication

The term “outbound” replication is a little misleading. In Active Directory replication, the request to replicate is always a pull request. One DC can notify the other that it has changes to replicate, but it cannot push those changes. Once it is notified of the changes, the other DC must initiate the replication by calling the DRSGetNCCChanges method and request to have those changes sent. In that lens, all replication is inbound replication. However, Microsoft documentation refers to “outbound” replication when a DC sends its changes, upon request, to another DC. So, for any given replication interaction, the requesting partner is performing inbound replication (request and update), and the responding partner is performing outbound replication (send updates).

Background on DCE/RPC

DCE/RPC is an industry standard for making remote procedure calls. Microsoft’s implementation of DCE/RPC is call MSRPC. DCE/RPC can use various transports: ncacn_np (transport via SMB Named Pipes); ncacn_ip_tcp (transport via TCP/IP) and ncacn_http (transport via HTTP), to name a few. Microsoft defines numerous operating system protocols that use RPC. Each interface comes with its own set of numbered procedures (opnums), and procedures are called by opnum rather than name. The DCE/RPC protocol requires an initial bind request (packet type 0x0b), where the desired RPC protocol is specified by its assigned UUID. After binding to a protocol, clients call a specific procedure within the protocol.

By way of example, services can be managed remotely via the Service Control Manager Remote Protocol (MS-SCMR), which permits transport via both TCP and named pipes. When using TCP, the DCE/RPC bind packet will specify the protocol’s UUID of {367ABB81-9844-35F1-AD32-98F038001003}, and when using named pipes, it will connect to the protocol’s designated pipe \PIPE\svcctl.

MS-DRSR RPC Protocol

Active Directory replication uses the Directory Replication Services Remote (MS-DRSR) protocol, which is implemented using the Distributed Computing Environment/Remote Procedure Call (DCE/RPC) protocol. The MS-DRSR protocol is designed for replication and management of data in Active Directory and specifies two separate interfaces: drsuapi and dsaop. Only drsuapi is relevant to this technique. MS-DRSR allows transport via TCP (ncacn_ip_tcp) and associates the drsuapi interface with the UUID {e3514235-4b06-11d1-ab04-00c04fc2dcd2} (which is represented in hex in network packets as 35 42 51 e3 06 4b d1 11 ab 04 00 c0 4f c2 dc d2).

While the drsuapi interface³ defines 30 different methods, four of them are essential for responding to a replication request:

• IDL_DRSBind - Creates a context handle necessary to call any other method in this interface.
• IDL_DRSUnbind - Destroys a context handle previously created by the IDL_DRSBind method.
• IDL_DRSGetNCChanges - Replicates updates from an NC replica on the server.
• IDL_DRSUpdateRefs - Adds or deletes a value from the repsTo attribute of a specified NC replica.

Participating in Replication

In order to act as a rogue DC, a machine must meet 3 criteria:

1. Be a part of the replication topology. Specifically, be referenced as a replication source in at least one nTDSConnection object for a legitimate domain DC.
2. Have the necessary SPNs defined to support Kerberos authentication. (Meeting this criteria requires having an NTDS Object in the site container of the configuration partition, because a DSA GUID – which is assigned to an NTDS Object – is a necessary element in composing the DSA SPN.)
3. Implement the basic set of RPC calls used in outbound replication: IDL_DRSBind, IDL_DRSUnbind, IDL_DRSGetNCChanges, IDL_DRSUpdateRefs.

Logging

DCs are responsible for logging changes to the directory that they originate. They do not log changes that they receive from another DC during the replication process; it is assumed that the originating replica will have already written the log. This makes a DCShadow attack particularly stealthy (after the rogue DC has been established – creating a rogue DC generates quite a few logs), because the originating DC is controlled by the attacker, which will obviously not create any logs to record the changes. These are the logs that would be generated by the attack:

Procedures

Procedure A: Insert a rogue DC

Because of all the objects that must be created for a machine to successfully participate in replication, there is only one procedure to implement this technique.

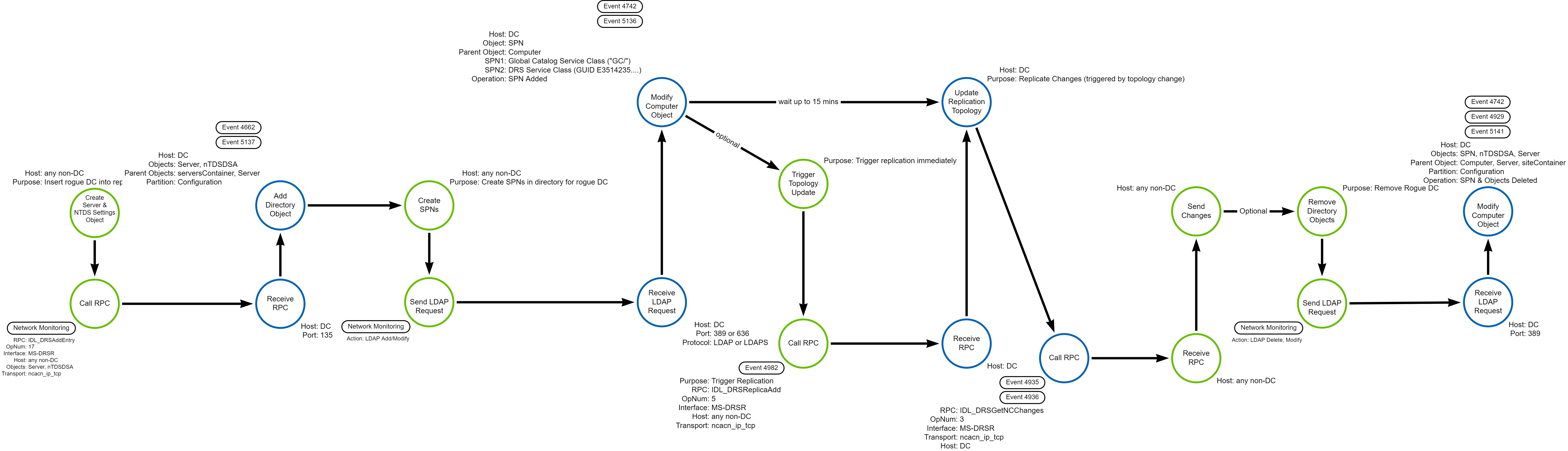

Detection Data Model

An attacker can add SPNs and server objects using LDAP or various drsuapi RPC methods, like DRSAddEntry and DRSWriteSPN. For replication-specific objects like nTDSDSA and NTDSConnection, the RPC methods are required. Once this is done, the attacker can either wait up to 15 minutes (the default configuration) for a KCC to see the new (malicious) replication partner and incorporate it into the replication topology, or they can trigger this to occur immediately by calling the RPC method DRSReplicaAdd. Either way, once the server has been established as a replication partner, the legitimate DCs that have it as a replication source will begin sending DRSGetNCChanges requests.

At that point, the attacker can freely make changes to any and all Active Directory objects on their rogue DC, and those changes will be replicated out to all DCs in the domain.

Available Emulation Tests
