TRR0015: Stealing Credentials from the NTDS.dit

Metadata

Key	Value
ID	TRR0015
External IDs	T1003.003
Tactics	Credential Access
Platforms	Windows, Active Directory
Contributors	Andrew VanVleet

Technique Overview

Adversaries may attempt to access or create a copy of the Active Directory domain database in order to steal credential information, as well as obtain other information about domain members such as devices, users, and access rights. In addition to looking for NTDS files on active Domain Controllers, adversaries may search for backups that contain the same or similar information.

Technical Background

What is the NTDS.dit file?

Microsoft’s Active Directory Services (ADS) uses a database to store all the data it requires – including groups, group membership, user objects, and user credentials (in the form of password hashes) – for everything in the domain. That database is stored in the NTDS.dit file on each domain controller. ADS uses synchronization to ensure that each domain controller’s copy of the database is identical. By default, the NTDS.dit file is stored in the folder %SystemRoot%\NTDS\NTDS.dit.

The NTDS folder holds a number of files that are used to maintain the database, but the actual data an attacker would want is stored in the NTDS.dit file.

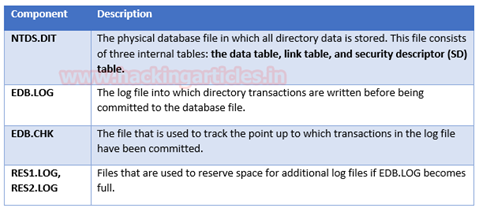

Contents of the NTDS folder
Source: Credential Dumping: NTDS.dit - Raj Chandel’s Blog

The file itself follows the Extensible Storage Engine (ESE) file format, which is a format developed by Microsoft. ESE is the core of Microsoft Exchange Server, Active Directory, and Windows Search. It’s also used by a number of Windows components including Windows Update client and Help and Support Center. Its purpose is to allow applications to store and retrieve data via indexed and sequential access.¹ An ESE file can be identified by the file header, which uses the following format:

<4 byte checksum> EF CD AB 89

The NTDS.dit file is constantly in use by Active Directory and is therefore locked against reading by any other process. In order to make a copy, you must use a method that permits copying locked files.

Sensitive information in the NTDS.dit file is encrypted using the boot key (also called System Key or SysKey), which is unique to each domain controller and is stored in the System registry hive (which itself is stored in the file C:\Windows\system32\config\SYSTEM). How the boot key is extracted is beyond the scope of this report, but details are available at SysKey and the SAM - Moyix Blog.

Why would an attacker want to get it?

Using the boot key and a copy of the NTDS.dit file, an attacker can extract password hashes for all users on the domain, which they can then attempt to crack. Alternatively, an adversary can extract the NT hash for the KRBTGT account, which can be used in a Golden Ticket attack.

Procedures

ID	Title	Tactic
TRR0015.WIN.A	Volume shadow copy access	Credential Access
TRR0015.WIN.B	Raw disk access	Credential Access

Procedure A: Volume shadow copy access

The VSS is a set of Component Object Model (COM) interfaces² that implement a framework to allow volume backups to be performed while applications on a system continue to write to them. Backup software can interface with VSS COM objects to create and delete shadow snapshots and copy files from them. Attackers can access copies of files, including sensitive system files and files locked by the operating system, through the Volume Shadow Copy Service.

What is VSS?

The Volume Shadow Copy Service (VSS) was introduced in Windows Server 2003 to facilitate the process of backing up and restoring critical business data without taking applications offline. Backing up files is complicated by the fact that the data usually needs to be backed up or restored while the applications that produce the data are still running, and thus data files might be open or in an inconsistent state. Also, if a data set is large, it can be difficult to back up all of it at one time because changes might be made during the time it takes to create the copy.

VSS coordinates the actions that are required to create a consistent shadow copy (also known as a snapshot or a point-in-time copy) of the data that is to be backed up. This is a complicated process that involves coordinating with all writers to temporarily freeze writes, complete all open transactions, and flush caches so that the data is in a consistent state. Then the copy is made, and future changes are logged to allow the VSS to reconstruct the state of the data at the time of copy. Once a shadow copy has been created, the files can be read even if the original files are locked.

What are Component Object Model (COM) interfaces?

COM is a technology that allows objects to interact across process and computer boundaries as easily as within a single process. COM allows developers to define an interface, or group of related functions, that can then be used by other programmers. Many Windows components, like the File Open dialogue, are implemented as COM objects to simplify the effort required to perform a common Windows task.³

COM interfaces are assigned a class identifier (CLSID) that is used to instantiate the COM object. So, for example, the CLSID for the VSS COM interface is DA9F41D4-1A5D-41D0-A614-6DFD78DF5D05, while the CLSID for the VSS Coordinator interface is E579AB5F-1CC4-44B4-BED9-DE0991FF0623. A program must first initialize the COM library by calling CoInitializeEx, then it can create an instance of an object by calling CoCreateInstance and providing the object’s class identifier (CLSID). After that, it can call any of the methods defined in the interface. So, after a program has instantiated a VSS Coordinator object, it can use that object to call the interface’s “DeleteSnapshots” method to delete a volume snapshot.

Using the VSS

There are numerous ways for users to interact with the VSS:

The COM interfaces can be accessed from all major programming languages: C, C++, VisualBasic, PowerShell and even Python. Microsoft provides a lot of documentation⁴ and an example application⁵ to help programmers learn how to use the COM classes and methods.
Microsoft has created a function, CreateVssBackupComponents (exported by VssApi.dll), that handles the task of instantiating the COM interfaces so it’s easier to use the VSS COM interface methods. The function returns a pointer to an IVssBackupComponents interface object, ready for use.
WMI has a Win32_ShadowCopy class that can be used to list, create, and delete VSS shadow copies. WMI can also be accessed through most Windows programming languages, or directly through tools like wmic.exe.
Windows has also defined an RPC interface for creating and deleting volume shadow copies, File Server Remote VSS Protocol
\[MS-FSRVP\]
. This RPC interface has methods to query, create, or delete shadow copies on a remote server. The RPC methods don’t expose all of the possible options available via the COM interfaces, but they do permit some actions to be performed remotely.
There are multiple windows applications, like VSSAdmin.exe and DiskShadow.exe, that have been created to facilitate interactions with the VSS.

VSS can create three kinds of shadow copies:

Complete copy - This method makes a complete copy (called a “full copy” or “clone”) of the original volume at a given point in time. This copy is read-only and can be transported to a different system.
Copy-on-write This method does not copy the original volume. Instead, it makes a differential copy by storing all the original values for any changes made to the volume in the volume shadow copy. The original data can be reconstructed by taking the data from the original volume, then rolling back changes using the original values stored in the shadow copy.
Redirect-on-write This method does not copy the original volume, and it does not make any changes to the original volume after a given point in time. Instead, it makes a differential copy by redirecting all changes to the volume shadow copy. The original data can be read from the original volume, while the current data state can be constructed by taking the original data and adding the changes logged in the shadow copy.

For the purpose of this procedure, we only need a differential shadow copy on the Domain Controller, which we will use to extract a full copy of the NTDS.dit.

Exposing and Surfacing Shadow Copies

A requester can make a shadow copy available to other processes as a mounted read-only device, which is known as “exposing”⁶ the shadow copy. Shadow copies can be exposed as a local volume – assigned a drive letter or associated with a mounted folder — or as a file share. A shadow copy can be exposed using the method IVssBackupComponents::ExposeSnapshot. Only persistent shadow copies can be exposed.

“Surfacing” a shadow copy means making it known to the system’s mount manager, so that it can be mounted like any other volume. Exposed shadow copies are also surfaced copies, but it’s possible to create a surfaced copy without exposing it. (In the example below, we create a surfaced shadow copy and then expose it via mklink.)

Example: Creating and Using a Shadow Copy in Powershell or VSSAdmin

To list existing shadow copies, you can use:

(using VSSAdmin) vssadmin list shadows
(using PowerShell) get-wmiobject win32\_shadowcopy

Example:

 **PS** C:\Users\user\Desktop> gwmi win32\_shadowcopy

 \_\_CLASS : Win32\_ShadowCopy
 \_\_SUPERCLASS : CIM\_LogicalElement >
 \_\_NAMESPACE : root\cimv2
 Differential : True
 ExposedLocally : False
 ExposedName :
 ExposedPath :
 ExposedRemotely : False
 ID : {FADFC2F5-749A-4632-8A1C-04F2D5FA4E13}
 Imported : False
 InstallDate : 20211013144420.052997-420
 Name :
 OriginatingMachine : TESTHOST
 Persistent : True
 ProviderID : {B5946137-7B9F-4925-AF80-51ABD60B20D5}
 VolumeName : \\?\Volume{93d0c553-e9b9-4f87-a13c-14f5a695ac83}\\


 **PS** C:\Users\user\Desktop> Get-Volume | format-table -property DriveLetter, UniqueID, FileSystemType

 DriveLetter  UniqueID  FileSystemType
 -----------  --------  --------------
             \\?\Volume{4dec07df-4886-495d-b819-9dbeb5fd7e90}\\ NTFS
 C           \\?\Volume{93d0c553-e9b9-4f87-a13c-14f5a695ac83}\\ NTFS
 D           \\?\Volume{b9ee48ff-146b-11e9-bf7e-806e6f6e6963}\\ Unknown
             \\?\Volume{e09f7c72-9ec6-4f9f-98ed-973b808c77b4}\\ NTFS
             \\?\Volume{efe8e10e-ee7f-4193-a810-a9774ff8ade4}\\ FAT32

The VolumeName identifies which volume is contained in this particular shadow copy. Powershell only provides the unique ID and you have to look it up with the Get-Volume cmdlet. VSSAdmin provides a simpler view of existing shadow copies:

 c:\Users\user\Desktop> vssadmin list shadows

 vssadmin 1.1 - Volume Shadow Copy Service administrative command-line tool

 (C) Copyright 2001-2013 Microsoft Corp.

 Contents of shadow copy set ID: {b69c4b7f-6c0a-4a4f-9528-a17a97f8d074}

    Contained 1 shadow copies at creation time: 10/13/2021 2:44:20 PM

       Shadow Copy ID: {fadfc2f5-749a-4632-8a1c-04f2d5fa4e13}
       Original Volume: (C:)\\?\Volume{93d0c553-e9b9-4f87-a13c-14f5a695ac83}\\
       Shadow Copy Volume: \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy2
       Originating Machine: TESTHOST
       Service Machine: TESTHOST
       Provider: 'Microsoft Software Shadow Copy provider 1.0'
       Type: ClientAccessible
       Attributes: Persistent, Client-accessible, No auto release, No writers, Differential

If there is no existing shadow copy for the desired volume, you can request that one be created:

(using PowerShell) gwmi -list win32\_shadowcopy).create("C:\\,"ClientAccessible" - A return value of 0 means it was successful, and the returned object will contain a ShadowID of the newly created copy
(using VSSAdmin) vssadmin create shadow /for=C: - This only works on Windows Server, for testing on Windows 10, use PowerShell

Most programs default to creating a surfaced but not exposed shadow copy. To read from it, most applications will need it to be locally exposed. One way to accomplish this is to use mklink to create a symbolic link to the volume (using the folder C:\Extract as our mount point in this example):

mklink /d C:\Extract \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy2\\

Then you can browse the contents of the shadow copy using the mounted folder like any other folder. Alternately, the copy command (which is a native command in cmd.exe) can copy from volumes what haven’t been assigned a drive letter or mounted to a folder. You can provide the volume identifier directly in the command. This is what the command looks like to extract the NTDS from a given volume shadow copy:

copy \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy2\Windows\NTDS\ntds.dit C:\Extracted\totallyinnocentfile.bin

To clean up, you can remove a symbolic link with:

rmdir C:\Extract

And you can delete the shadow copy with:

(using PowerShell) (gwmi win32\_shadowcopy -filter "ID='{fadfc2f5-749a-4632-8a1c-04f2d5fa4e13}'").delete()
(using VSSAdmin) vssadmin delete shadows /shadow={fadfc2f5-749a-4632-8a1c-04f2d5fa4e13}

The following tools (administrative or attack tools) can be used to access the NTDS.dit via the volume shadow service:

Impacket’s secretsdump.py
esentutl
Metasploit’s NTDSGRAB
NTDSUtil
VSSAdmin
Powershell - get-wmiobject and win32_shadowcopy
WMIC - win32_shadowcopy
diskshadow
CrackMapExec

Detection Data Model

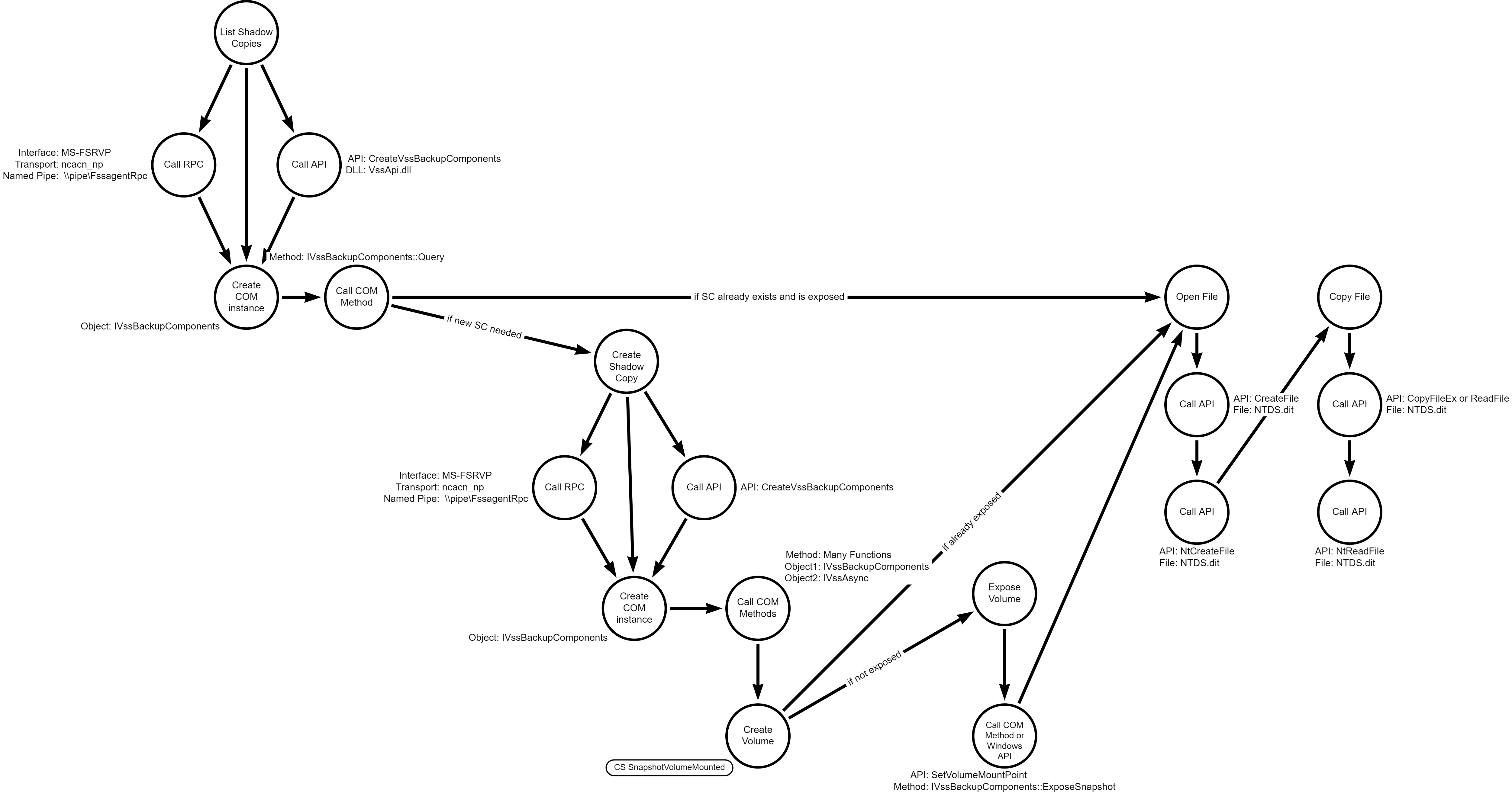

DDM - Volume Shadow Copy access

There is very little public telemetry to identify access to files inside a volume shadow copy.

Procedure B: Raw disk access

An attacker can gain access to restricted or sensitive files by accessing the raw disk or volume, allowing them to bypass OS security and file locking mechanisms.

What is raw disk access?

Normal input/output operations use operating system APIs (like CreateFile and WriteFile) to interact with files on the disk. This permits the operating system to do all the work required to locate the file on the physical disk, regardless of file system structure, and read or write the requested data. This also means that the operating system can enforce consistency protections and security checks on the requested access. A few examples of checks the operating system might enforce are:

Locks on files which are opened by a process and cannot be opened by other processes, such as the NTDS.dit file or SYSTEM registry hives.
A System Access Control List (SACL) flag set on a file to alert when the file is opened.
A Discretionary Access Control List (DACL) which only allows a specific set of users, like SYSTEM, to open a file.

An attacker can bypass these OS-level protections by opening the raw risk directly, but they also lose the benefits of having the operating system read the file system structures.

How are raw disks structured?

Physical disks are subdivided into partitions and volumes. There is a table maintained of the divisions in one of two formats: Master Boot Record (MBR) or Global Partition Table (GPT). GPT is the way most modern operating systems do it, while MBR is the legacy method. The disk, partitions, and volumes of a generic business laptop are below: there are 3 volumes and 3 partitions across a single disk, with a 1-1 relationship between volumes and partitions. Two volumes have been formatted using the NTFS file system, but only one (C:) has been assigned a drive letter and is accessible from the OS.

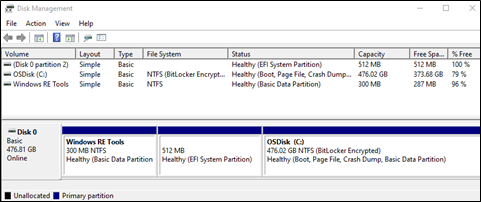

Image of Disk Management dialogue

There are many details about disk management and partitioning that aren’t in scope for this TRR. The most important aspect is that in order for the operating system to store files on a disk, it must be assigned to a volume, given a drive letter and formatted with a file system (on Windows, that’s usually NTFS). Thus, to read raw data, we will mostly likely be accessing a volume. It is possible to access the raw physical disk, but then you would have to parse the GPT or MBR yourself to find the volume you wanted.

At the time of creation, volumes are assigned a globally unique identifier (GUID) that can be used to reference them. They can also be assigned a drive letter, a label, both, or neither. (A label is a user-friendly name that is assigned to a volume, usually by an end user, to make it easier to recognize.) In the picture above, the third volume has been assigned a label of Windows RE Tools but no drive letter. The second has both a label of OSDisk and a letter of C:. The first volume has neither label nor letter.

How do you read a raw volume in Windows?

The CreateFile API provides the ability to access everything from raw disks to individual files. In order to access a file, you provide the full file path. If you need to access a device instead of a file, the \\.\\ prefix will access the Win32 device namespace instead of the Win32 file namespace. So, to access a physical disk, you use \\.\PhysicalDrive0 (the number specifies which disk), and to access a volume you can use \\.\C: (specifying the volume drive letter).

It is also possible access a volume (like one that doesn’t have a drive letter assigned) by using the \\?\\ prefix. The \\?\\ prefix to a path string tells the Windows APIs to disable all string parsing and to send the string that follows it straight to the file system. So, you can access a volume using \\?\Volume{*GUID*}\\ (the PowerShell Get-Volume cmdlet will show volume GUIDs). You must have administrative rights to open a raw disk or volume.

When reading a disk in “raw” mode, the operating system doesn’t interpret the data at all, it simply reads the raw binary data from the disk sectors. You must parse file system structures (like the MFT) manually to find and read the physical address of the desired data on disk. This also requires knowing disk geometry details like sector size. There is at least one public library⁷ that defines all the data structures and functions needed to read the NTFS file system using a raw volume. Attackers can use it or create their own implementation.

Are there legitimate cases for raw volume access?

Backup solutions will often open the entire volume and copy it byte for byte. Forensics solutions will do the same.

Detection Data Model

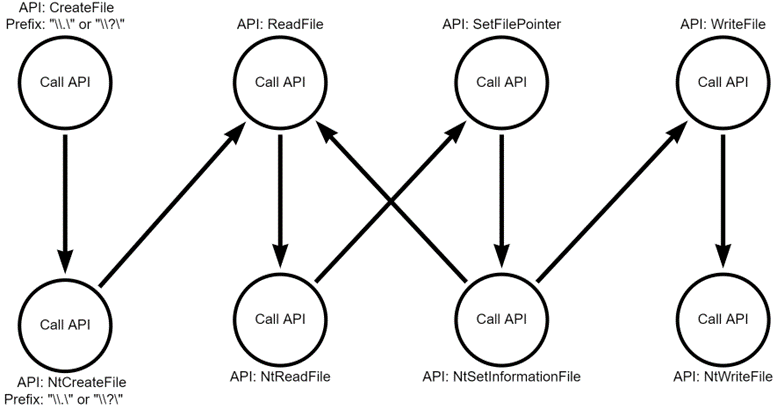

DDM - Raw Disk Access

Similar to procedure A, there is little public telemetry available for raw disk access.

Available Emulation Tests

ID	Link
TRR0015.WIN.A	Atomic Tests 1-9
TRR0015.WIN.B
