TRR0017: Malicious USB Device

Metadata

Technique Overview

An adversary with physical access to a system can use a malicious USB device to record user keystrokes, inject keystrokes, or transfer data to or from a target machine. USB attacks are very versatile, because the attacker controls all aspects of how the USB device appears to the user and host and what the device does once it is connected.

Technical Background

Universal Serial Bus (USB)

Source: Universal Serial Bus

USB is a plug and play interface that allows a computer to communicate with a wide range of peripheral devices. The system is controlled by the USB host controller which provides the interface between connected devices and the operating system. A USB system consists of a USB host, an interconnect, and USB devices.

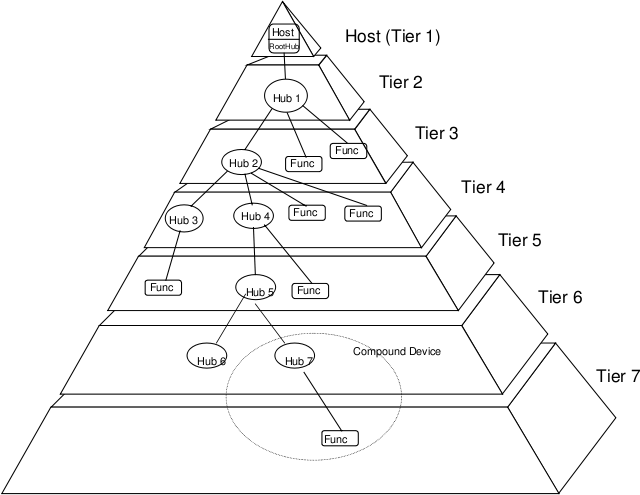

A USB system contains only one USB host. The host interfaces with the USB interconnect via the host controller. The host includes an embedded hub called the root hub which provides one or more attachment points, or ports. The interconnect provides a connection from the USB device(s) to the USB host. Physically, the USB interconnect is a tiered star topology (see image). A maximum of seven tiers are allowed, and the root hub occupies the first tier.

USB Devices

Devices connect at attachment points. They are classified as a hub or a function. Hubs provide additional attachment points to the bus, while functions provide capabilities to the system. Some devices can be both hubs and functions in one device, and these are called compound devices.

Every USB device has one device descriptor, which provides general information about the device. The device descriptor includes the device class code to identify the type of USB device (audio, printer, keyboard, mass storage, etc) but most device manufactures use a generic device class code (0xEF - “Miscellaneous Device”) or use a class code that indicates that each endpoint will define its own class code (0x00).

All devices also have at least one configuration descriptor, but can provide alternative configurations. Alternate configurations can include different interfaces, different power usage configurations (perhaps a hub-powered configuration and a self-powered configuration), or other configuration variations. Changing a device’s configuration requires stopping all activity on all interfaces, so most modern USB device developers define a single configuration and use alternative interfaces instead.

Each device configuration has at least one interface defining a set of zero or more endpoints that provide the device’s functionality. An interface can be seen as a group of endpoints that perform a single function of the device. For example, you could have a multi-function fax/scanner/printer device. Interface descriptor one could describe the endpoints of the fax function, interface descriptor two the scanner function, and interface descriptor three the printer function. There is no limitation on how many interfaces are enabled at a time; a device can have 1 or many interfaces enabled simultaneously.

Interfaces are identified by a numbered interface descriptor. Additionally, you can define two interface descriptors with the same interface number and an AlternativeSettings field to distinguish different variations of the interface. When a configuration is enabled, the interface descriptors with an AlternativeSettings field equal to zero are used. During device operation, the host can send a SetInterface request to direct the device to switch to an alternate interface descriptor by specifying the desired AlternativeSetting value. Interfaces can be changed while other interfaces are still active, allowing a more dynamic way to reconfigure a device than configuration changes.

Endpoints are used to define the sources and recipients of data to and from the host. Endpoints are identified by a unique device-defined number and define the endpoint’s data transfer direction (in or out), maximum packet size, the transfer type (control, interrupt, isochronous, or bulk transfers). At the software layer, the device driver can send a packet to or receive a packet from any of the device’s defined endpoints. For example, the host’s device driver might send data to endpoint 1 (EP1 IN), where it will be held in a buffer until the device firmware reads it. The device can also write data to an endpoint (say EP2 OUT), and it will wait in a buffer until the host driver reads it. Although endpoints have a specific direction, two endpoints may have the same endpoint number but opposing data transfer directions (EP1 IN and EP1 OUT).

All devices must support endpoint zero for both input and output (EP0 IN and EP0 OUT), which are collectively known as the default control pipe. This is the endpoint which receives all the device’s control and status requests during enumeration and while the device is operational on the bus. To facilitate device enumeration and configuration, EP0 is accessible whenever the device is attached and powered; all other endpoints are in an undefined state until the device is configured. EP0 is reserved; no interface may define a functional use of endpoint zero.

There are 4 different transfer types defined, each supporting a different use case:

• Control transfers - this is an essential transfer type used to transmit data for device enumeration, configuration, status updates, and control. For example, when a device is plugged in the host will send a control transfer requesting information about the device’s configuration and interface descriptors. A driver might also send a control transfer to change to an alternative interface. A device will send a control transfer to report the status of some functionality, like a transfer being completed.

• Interrupt transfers - these transfers are used for small, urgent messages between the device and the host. For example, a USB mouse or keyboard will use interrupt transfers to send time-sensitive, small data packets containing information about keystrokes or mouse movements.

• Isochronous transfers - these transfers are for continuous and periodic data transfers with some time sensitivity, similar to the UDP protocol. Isochronous transfers do not include error correction. For example, an audio or video device would define an endpoint using isochronous data transfers to stream data that needs to be received in a timely and ongoing fashion.

• Bulk transfers - these transfers are for large amounts of non-time sensitive data. Bulk transfers provide error correction in the form of a CRC16 field on the data payload and error detection/re-transmission mechanisms to ensure data is transmitted and received without error. A USB mass storage device would define an endpoint using bulk transfers.

USB Design Flexibility

Because the USB protocol was designed to allow connectivity to ANY type of device (the universal part), it provides immense flexibility to device developers. This also provides immense flexibility to an attacker looking to abuse USB devices. A USB device is responsible for identifying itself and its functionality, and that functionality can change dynamically as alternative configurations or interfaces are activated. This allows an attacker to create a USB that physically looks like anything and can report itself to the host as anything: keyboard, storage device, printer, network interface, etc. Devices can report themselves as generic composite USB devices and have dynamic capabilities, making it very difficult to really know what a device may or may not do.

For example, a USB device can look like a wireless mouse receiver but present itself as a keyboard and send fake keystrokes to the host. Or it could present itself as a networking device and configure a virtual network, allowing the host to connect to a ‘website’ hosted on the device itself and transfer data back and forth. A device could look and function just like a speaker, but at midnight it enables an HID interface and injects keystrokes. There is no built-in operating system-level validation or enforcement of USB capabilities. So long as a driver is identified and the device acts in accordance with the driver’s expected interface, it works. This makes detecting malicious USBs an extremely challenging task. The attacker controls all aspects of how a device appears to the user and the host and what a device does once it’s connected. This is why security professionals are so cautious about unknown USB devices.

Device Enumeration

Whenever a device is connected to a powered port, a set of interactions take place to initialize the device, identify it and its various interfaces, and find a driver to handle it. A simplified description of those steps follows:

1. The port’s hub notifies the host controller of a newly attached device.

2. The host controller then sends the device a GET_DESCRIPTOR message requesting the device descriptor.

3. The device responds with a USB_DEVICE_DESCRIPTOR data structure containing its device descriptor.

4. The Windows operating system will create a device entry, assign a hardware ID (HID) to the device, and search for a driver to handle it. This can be a generic driver or one that has been registered as a handler for the specific device type (defined by the fields bDeviceClass, bDeviceSubClass,bDeviceProtocol). (To register a driver as the handler for a specific device, you must either install the driver on the system or provide it to Microsoft for inclusion in their device driver database.)

5. The host controller sends the device another GET_DESCRIPTOR message requesting the first configuration descriptor.

6. The device sends back a USB_CONFIGURATION_DESCRIPTOR structure containing the information for that configuration, followed immediately by a USB_INTERFACE_DESCRIPTOR for the first interface descriptor for that configuration, followed immediately by a USB_ENDPOINT_DESCRIPTOR for each of the endpoint descriptors for that interface (which may be none). This continues until all the information within the scope of the specific configuration is transferred to the host controller.

7. The host controller then picks a configuration and sends a SET_CONFIGURATION message to the device. All endpoints are initialized as described by the selected configuration.

8. The device is ready to use.

USB Human Interface Devices (HID)

For HID devices, the interface descriptor will include a HID descriptor alongside the endpoint descriptors. HID devices have both class/sub-class values of 0x00 in their device descriptors (indicating to use the class/subclass in each interface descriptor instead). The class value that identifies a HID device in the interface descriptors is 3. The sub-class value in the interface descriptor can be either 1 to indicate the device supports the boot protocol (it will work with the BIOS during boot), or zero (it only works after the OS is loaded). The protocol field in the interface descriptor reports if it is a mouse or a keyboard: 1 indicates the HID device is a keyboard, while 2 indicates the device is a mouse. HID devices send data via interrupt transfers. The transfer reports device status change information, like a key press, mouse movement, etc.

Logging - Crowdstrike Events

Crowdstrike records most of the device enumeration process the first time a new device is connected, and then every 7 days thereafter. Each of the device, configuration, interface, endpoint, and HID descriptors are reported in their respective Crowdstrike events. The DeviceDescriptorSetHash field can be used to link all the descriptors for a single device together.

• DcUsbConfigurationDescriptor
• DcUsbInterfaceDescriptor
• DcUsbEndpointDescriptor
• DcUsbHIDDescriptor

Crowdstrike also reports every time a USB device is connected or disconnected. The connection event includes the device descriptor information and is sent each time the system powers on, the associated hub/port is power cycled, or the device is physically inserted into or removed from the system.

• DcUsbDeviceConnected
• DcUsbDeviceDisconnected

Procedures

Procedure A: Hardware-based keystroke logging

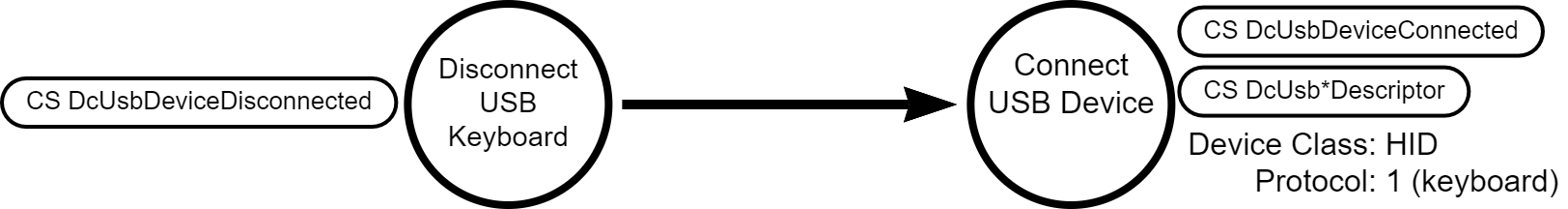

In this procedure, an attacker inserts a USB device between the user’s existing external USB keyboard and the machine. The malicious USB device reports itself as an HID device (it can also mimic the device and vendor IDs reported by the original keyboard to make itself difficult to detect). The malicious USB device then records all keystrokes and forwards them on to the host. This allows the device to create a log of all keystrokes typed by the machine’s user, including logon credentials. The malicious USB device can then be manually retrieved, or it can send the keystroke log to the attacker (via Bluetooth, wireless, or any other means). If the malicious USB device mimic’s the original device’s configuration, it can be almost impossible to detect its presence via security logging.

Detection Data Model

Procedure B: Keystroke injection

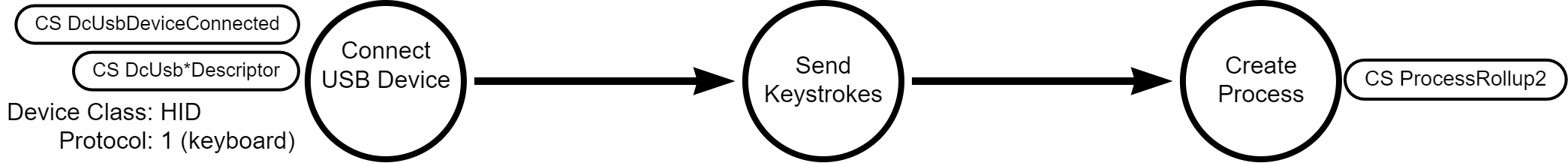

An attacker inserts a USB device into a target asset. The device identifies itself as a keyboard and then sends the host a series of preprogrammed or remotely-received keystrokes, allowing the attacker to run arbitrary commands on the target asset.

Detection Data Model

Procedure C: Clandestine data transfer

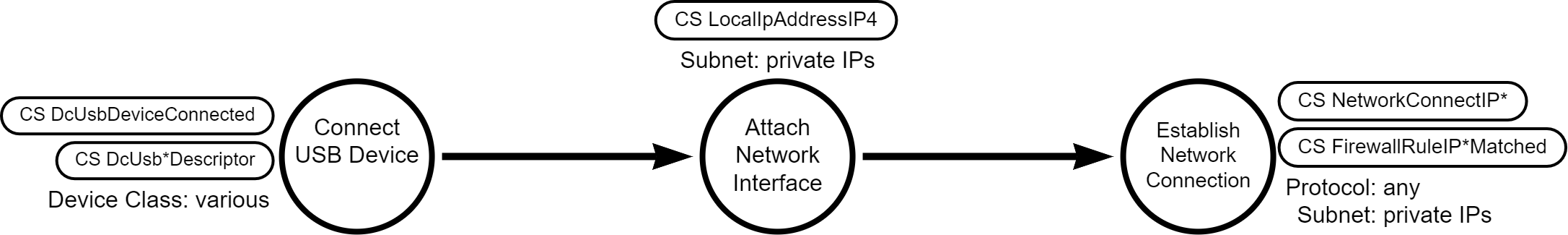

An attacker inserts a USB device into the target asset. The device identifies itself as a USB network interface (there are various types, including ‘CDC-Data’ and ‘Communications and CDC Control’) to the host. The USB then emulates a virtual private network and presents itself as a host on that network. The user can connect to the device via SSH, FTP, HTTP, or any other networking protocol and transfer data to/from the device. This allows the attacker to control the type of data transfer used, potentially circumventing removable media and DLP controls. A connection to the device will appear in system logs as a network connection to an internal host (on a private IP address) rather than a data transfer to a mass storage removable device.

Detection Data Model

Available Emulation Tests
