TRR0019: Remote Email Collection

Metadata

Scope Statement

This TRR covers Exchange Online (EXO) specifically. While there are many features in common between Exchange Server (the self-hosted version) and EXO, there are also features that EXO does not support (like MailboxExportRequests in Exchange Powershell¹). This TRR will address only techniques that apply to EXO. Additionally, this TRR is focused on remote email collection, which we will define as collection that doesn’t require access to a victim’s machine or mail client. Techniques that require access to a victim’s machine (like extracting emails from the local cache) or a victim’s mail client (like mail forwarding rules and Outlook add-ins) are out of scope for this report.

Technique Overview

Threat actors often target administrator mailboxes, which can often yield useful information like network details and credentials that can grant additional access. Exchange Online is one of the most ubiquitous mail servers and is frequently targeted by threat actors to collect information from an organization.

Technical Background

Exchange Online (EXO)

Exchange is an enterprise-scale mail, contacts, and calendaring server (with more features in later versions) that has been around since 1996. In all those years it has come to support numerous protocols and APIs to allow users to send and receive email messages. Currently, the two most popular variants of Exchange are Exchange Server, which is the self-hosted solution, and Exchange Online (EXO), which is a software-as-a-service (SaaS) solution hosted by Microsoft in Azure.

Exchange Online is a ‘first-party application’² in Azure, meaning it is hosted by Microsoft in their own tenant. It has been assigned the Application ID of 00000002-0000-0ff1-ce00-000000000000. When a user adds Exchange Online to their tenant, an Enterprise Application (aka service principal) is created in their tenant to represent the application and its local configuration.

EXO RBAC

Exchange Online has its own RBAC system independent of the Azure tenant in which it’s hosted. A role or management role grants the permissions to do a set of tasks. Exchange Online permissions use the following types of roles:

• Administrator roles: Defines the set of tasks that an admin can do. When an administrator role is assigned to a role group, and an admin or user is a member of that role group, that person is granted the permissions provided by the role. These roles are listed and described in this article.
• End-user roles: These roles, which are assigned using role assignment policies, enable users to manage aspects of their own mailbox and distribution groups that they own. End-user roles begin with the prefix “My.”
• Application roles: The role names that start or end with ‘Application’ are part of RBAC for Applications in Exchange Online. They will be discussed more in depth in the Application Roles in EXO section.

The Organization Management role group is the most highly-privileged role in EXO. It holds almost all available permissions, including the Role Management permission that allows a member of the group to assign themselves any other role. Thus, an Organization Manager has full control over the EXO instance.

Users can be granted administrative rights in Exchange Online without adding them to Entra roles by adding the user as a member of an EXO role group. The user gets permissions in Exchange Online, but they don’t get permissions in other Microsoft 365 workloads.³ Additionally, there are a handful of Entra roles that are automatically assigned EXO roles. The following table lists them and the EXO role groups that they correspond to. (The table lists Administrator roles in other Office 365 solutions to illustrate that they hold no permissions in the Exchange tenant.)

[!NOTE]

EXO has the ability to grant users or groups delegating role assignments. A delegating role assignment doesn’t give the role assignee the permissions granted by the role, only the ability to assign the role to others. This can sometimes be confusing when listing role assignments in ExchangeOnline PowerShell because users will be listed as having a role whether they have the actual role or just permission to assign the role.

In order to list only the users who have the role permissions, you can use the command:

Get-ManagementRoleAssignment -role 'RoleNameHere' -GetEffectiveUsers -Delegating:$False

To assign a delegating role assignment, use the command

New-ManagementRoleAssignment -Role 'RoleNameHere' UserOrGroupHere -Delegating

Application Roles in EXO

Exchange defines “Application Roles” that allow applications to be granted permission to access EXO resources. There are two different permission grant systems for applications in operation in EXO:

1. API permissions consented in Entra ID⁴
2. EXO’s RBAC for Applications⁵

These two permission grant systems operate completely independent of one another. An app can have both Microsoft Entra consented permissions and EXO RBAC assignments. Permission consents are additive (i.e. an application’s effective permissions are the union of the permissions granted in either system). Currently, there is no single interface that shows all permissions granted in both systems, Microsoft has promised this feature in the future.⁶ An administrator must check both EXO’s Role Assignments (via PowerShell) and an SPN’s ‘API Permissions’ in Entra to determine what permissions are held.

API Permissions Consented in Entra ID

Entra ID Applications can request specific permissions to resources in the tenant and must be granted these by user or admin consent (admin consent grants it on behalf of all users). Each permission includes a claim (User.Read, User.Write, etc) against an API (Microsoft Graph, Office 365 Exchange Online, etc).

Users can only grant consent for “low impact” permissions, otherwise admin consent is required. The application developer determines which permissions require user or admin consent. Global Admin, Application Admin, and Cloud Application Admins all have permissions to “grant permissions to applications” and can provide tenant-wide consent.

Entra supports two types of API permissions: “Application” and “Delegated.”

Application Permissions

Application permissions are used by apps that run without a signed-in user present, for example, apps that run as background services. These permissions are held directly by the application and apply to all relevant resources in the tenant. For example, an app that has the Mail.Read permission can read the mailboxes of every user in the organization.

• For application permissions, the effective permissions of the app are the full level of privileges granted by that permission.
• Application permissions are also called “App-only permissions” (in documentation), “AppRoles” (in the application manifest, logs and the Graph API) and “roles” (in the requiredResourceAccess section of the application manifest and OAuth token). The permissions an application requires can also be seen in the “API Permissions” blade of the App Registration.

Application developers can define the roles exposed by their application using either the “Manifest” or the “App roles” blade in the portal or by adding an appRoleAssignment programmatically. When a user signs in to the application, Entra ID adds a roles claim to the OAuth token they receive for each role that the user or service principal was granted to the resource they’re authenticating to. These can then be used by the application to implement claim-based authorization (i.e. granting access based on a user’s role claims).

Delegated Permissions

Delegated permissions are used by apps that have a signed-in user present. They grant the application the ability to exercise the requested permission on behalf of the user. The app is delegated with the permission to act as a signed-in user when it makes calls to the target resource. For example, an app with a Mail.Read delegated permission can read the mailbox of the signed-in user only.

• For delegated permissions, the effective permissions of your app are the least-privileged intersection of the delegated permissions the app has been granted (by consent) and the privileges of the currently signed-in user. Your app can never have more privileges than the signed-in user. For example, if a signed-in user doesn’t have rights to read their own mailbox, then an application with the Mail.Read delegated permission will not have permission to read the user’s mailbox.
• Delegated permissions are also called “scopes” (in documentation, the requiredResourceAccess section of the application manifest, and the OAuth token) and “OAuth2 permission scopes/grants” (in logs, the application manifest, and the Graph API)

Application developers can define the delegated permissions exposed by their application using either the “Manifest” or the “Expose an API” blade in the portal or by adding an oauth2PermissionGrant programmatically. When a user signs in to the application, Entra ID adds an scp claim to the OAuth token they receive for each scope that the user or service principal was granted to the resource they’re authenticating to.

[!NOTE]

You can view an application’s manifest by using the PowerShell Get-AzureADServicePrincipal cmdlet. This is particularly useful for 1st or 3rd party applications where you can’t see the manifest or App Registration. For example, the Microsoft Graph API is registered as AppId 00000003-0000-0000-c000-000000000000 and the Azure AD API is registered as 00000002-0000-0000-c000-000000000000. (These IDs will be the same across all tenants, while the Service Principal will be distinct for each tenant – it will share the same AppID, but have a unique ObjectID). The AppRoles or OAuth2Permissions defined in the app manifest for those applications show all the application and delegated permissions that can be requested for that application’s API.

$EXO = Get-AzureADServicePrincipal -Filter "AppId eq '00000002-0000-0ff1-ce00-000000000000'"
$EXO.Oauth2Permissions

AdminConsentDescription : Allows the app to read mail a user can access, including their own and shared mail.
AdminConsentDisplayName : Read user and shared mail
Id                      : ad13ac2e-ad46-4dc0-b7da-249c94395a6d
IsEnabled               : True
Type                    : User
UserConsentDescription  : Allows the app to read mail you can access, including shared mail.
UserConsentDisplayName  : Read mail you can access
Value                   : Mail.Read.All
....

Mail Related Permissions in Entra

Permission to access EXO’s resources can be acquired through both the Graph API and the Office 365 Exchange Online (EXO’s own application registration in Entra) application API. Between both APIs, there are many EXO-related API permissions available; this TRR will only list those that grant the ability to read email messages. The table will use “EXO” to refer to the Office 365 Exchange Online App Registration in Entra.

RBAC for Applications

EXO’s RBAC for Applications provides the ability to grant an application a role with a limited scope (for example, only the mailboxes of employees working at a specific location). Entra-consented permissions by default allow access to all resources, though they can be scoped using Application Access Policies⁷ (RBAC for Applications is intended to replace Application Access Policies). Microsoft advises that tenant-wide permissions should be assigned in Microsoft Entra ID while resource-scoped permissions should be granted using RBAC for Applications.⁸

RBAC for Applications uses a Management Scope to define the scope under which a permission can be exercised. (A ManagementScope is also referred to as a CustomResourceScope.) It is not necessary to define a limiting scope, but it is recommended. ManagementScopes can be defined according to numerous available criteria⁹; for example, mailboxes starting with a particular string, or users with a specific department or title.

EXO Application Roles allow access to EXO resources using either the Graph API or EWS (there is only one for EWS, which grants full access to all mailboxes). In order to use either protocol, a service principal (SPN) must be registered in Entra and EXO so that it can be bound to the application role. The EXO SPN is simply a reference to the Entra SPN, but it must be created in EXO before it can be assigned an application role.¹⁰ The Entra SPN is necessary to allow the application to authenticate with Entra and receive an OAuth token to authorize further API calls. (Previously, an application could also authenticate using ‘basic authentication,’ but that is no longer possible. See the section on Basic vs Modern Authentication for details.) The EXO SPN is necessary to grant a specific application a ManagementRoleAssignment in EXO.

[!WARNING]

EXO’s RBAC for Applications roles are NOT included in the Entra API permissions list or the OAuth token’s claims: Entra is completely unaware of them. EXO identifies the service principal using the OAuth token and grants it access to resources according to the ManagementRoleAssignment scope.

You can view RBAC for Applications role assignments using ExchangeOnline PowerShell’s Get-ManagementRoleAssignment cmdlet. Below is an example of an Entra SPN that has been assigned the “Application Mail.Read” role in RBAC for Applications. The RoleAssigneeName is the SPN’s ApplicationID in Entra (in this case, it starts f731c7d5).

Role                     RoleAssigneeName             RoleAssigneeType    AssignmentMethod
----                     ----------------             ----------------    ----------------
Application Mail.Read    f731c7d5-5de2-458e-93d8-...  ServicePrincipal    Direct

The table below lists the RBAC for Applications role name, the protocol it is associated with, and the permissions that the role includes.

EXO APIs

There are 2 primary APIs for interacting with Exchange Online, though a third undocumented API exists to support the ExchangeOnline PowerShell module. All APIs require OAuth2 tokens issued by Entra ID for authentication and authorization.

Microsoft Graph The Microsoft Graph API offers a single REST endpoint, https://graph.microsoft.com, to provide access to data and resources across the Microsoft cloud, including Microsoft 365. Microsoft has created numerous resources, including a PowerShell module and various SDKs, to assist developers in building applications that make use of Graph. It has also deprecated a number of legacy APIs in favor of Graph; Graph is the recommended solution for most Microsoft cloud-based solutions.

Exchange Web Services API Exchange Web Services (EWS) was the primary API for access EXO data and resources before Graph. It is a SOAP-based API, and there is also an EWS managed API for use with the .NET framework. Microsoft has not been making updates to EWS since 2018, and it will be completely retired for EXO in October 2026 (it will continue to function for Exchange Server).¹¹ EWS can be enabled or disabled at both the tenant or mailbox level using the organization-level or user-level EWSEnabled flag, which can be viewed with the Get-OrganizationConfig or Get-CASMailbox cmdlets.¹²

Exchange Online Admin API The Exchange Online Admin API at https://outlook.office365.com/adminapi/beta is a dedicated REST API to support the ExchangeOnline PowerShell module. It is not documented, but can be used to run PowerShell cmdlets directly without the need to run PowerShell locally. You can use the API to make POST requests to the https://outlook.office365.com/adminapi/beta/{tenantId}/InvokeCommand endpoint, providing the ExchangeOnline PowerShell cmdlet name and parameters in the request body.

EXO Logging

In order to get audit logs from EXO, mailbox auditing must be enabled (it is enabled by default). There are two places it can be set: the organization AuditDisabled field and the individual mailbox AuditEnabled field. When enabled, the organization-level configuration overrides that of individual mailboxes, so if the AuditDisabled field is set to False then all mailboxes will be audited, regardless of their individual AuditEnabled setting. If AuditDisabled is True then only those mailboxes with AuditEnabled set to True will generated audit logs.

You can view an organization’s or mailbox’s auditing configuration with the following ExchangeOnline PowerShell commands:

Get-OrganizationConfig | select-object AuditDisabled

Get-Mailbox -Identity <mailbox> | format-list AuditEnabled

The following actions are logged for each user logon type:

* Audited by default if auditing is enabled for a mailbox.
** Entries for folder bind actions performed by delegates are consolidated. One log entry is generated for individual folder access within a time span of 24 hours.
*** Auditing for owner logins to a mailbox works only for POP3, IMAP4, or OAuth logins. It doesn’t work for NTLM or Kerberos logins to the mailbox.

The type of logon is indicated by the LogonType field, with the follow possible values:

• 0 - logon by the mailbox owner
• 1 - logon by an administrator
• 2 - logon by a delegate
• 3 & 4 - logon by services in the Microsoft datacenter
• 6 - logon by a delegated administrator

[!NOTE]

Mailboxes are considered to be accessed by an administrator only in the following scenarios:

• In-Place eDiscovery is used to search a mailbox.
• The New-MailboxExportRequest cmdlet is used to export a mailbox (only applies to Exchange Server)
• Microsoft Exchange Server MAPI Client and Collaboration Data Objects is used to access the mailbox.

These logs are written to the M365 Unified Audit Log (UAL). When reading the MailItemsAccessed event logs, it’s important to understand the two types of access possible:

• Sync operations are only recorded when a mailbox is accessed by a desktop Outlook client. During the sync operation, these clients typically download a large set of mail items from the cloud to a local computer. The audit volume for sync operations is huge, so instead of generating an audit record for each mail item that’s synched, Microsoft generates an audit event for the mail folder. In a sync operation, all mail items in the synched folder may have been accessed.

• A bind operation is access to a specific individual email message. For bind access, the InternetMessageId of individual messages is recorded in the audit record. Bind operations that occur within a 2 minute interval are aggregated into a single MailItemsAccessed audit record. Each message that was accessed is identified by its InternetMessageId, and the total number of aggregated operations in the record is displayed in the OperationCount field in the AuditData property.

The MailItemsAccessed mailbox-auditing action covers all mail protocols: POP, IMAP, MAPI, EWS, Exchange ActiveSync, and REST.

[!TIP]

EWS has the concept of ‘first class properties’ that are a set of properties returned when requesting an item. First class properties include the message ID, subject, size, sender, whether or not the message has been read, etc. The message body and attachments are not in the set of first class properties. When recording access to items via a MailItemsAccessed log, reading only first class properties does not count as ‘accessed.’ A MailItemsAccessed log will be generated only if the body or attachments have been requested (which requires a bind, load, or getItem request for the specific item).

[!NOTE]

If more than 1000 MailItemsAccessed audit records are generated for a single mailbox in less than 24 hours, EXO stops generating auditing records for MailItemsAccessed activity for that mailbox for 24 hours after the mailbox was throttled. Only MailItemsAccessed records are throttled, all other audit records are unaffected. Note that throttling occurs when 1000 audit events are generated, not when 1000 items are accessed.

ApplicationImpersonation

EXO previously supported the ability for a user account to hold the ApplicationImpersonation role, which allowed the user to access other user’s accounts via EWS. Because of the security issues caused by this role, Microsoft has disabled it effective March 2025.¹³ The role enabled the impersonator to perform operations using the permissions associated with the impersonated account, including accessing and sending emails. ApplicationImpersonation was intended for use with service accounts and was the recommended solution for scenarios where a single account needed access to all other user mailboxes (for example, to set an out-of-office reply automatically or to archive mail).

This permission allowed threat actors to grant an account the ApplicationImpersonation role and use it to collect all email from an organization. (For example, the MailSniper tool abused this role to collect email from a victim tenant.¹⁴)

Procedures

Procedure A: Valid Credentials

An attacker who possess valid credentials for a user can access that user’s email by logging in to their account. EXO supports numerous protocols for mail access, including POP3, MAPI, IMAP, SMTP, and Exchange ActiveSync. Microsoft also offers the Outlook Web App (OWA), which is a SaaS version of the Outlook client that can be used to access mail in EXO. Any mail client using these protocols can be used to authenticate and retrieve the user’s messages.

Basic vs Modern Authentication

Exchange Online originally supported both basic and ‘modern’ authentication. Basic authentication refers to the client providing just a username and password, while EXO’s ‘modern’ authentication is based on OAuth2 and allows multi-factor authentication (MFA), smart cards, and certificate-based authentication (CBA). Modern authentication also respects the tenant’s conditional access policies (CAP). As of January 2023, basic authentication has been disabled in EXO for Exchange ActiveSync (EAS), POP, IMAP, Remote PowerShell, EWS, Offline Address Book (OAB), Autodiscover, Outlook for Windows, and Outlook for Mac.¹⁵ Attempts to use basic authentication now result in a HTTP 401 and “bad username/password” error.

[!NOTE]

When basic authentication was disabled, Microsoft did not alter the tenant’s authentication policy. Thus, if basic auth was enabled via policy prior to the cut-off date¹⁶, it will still show as enabled but will not work. This can be seen with Exchange Online PowerShell’s Get-AuthenticationPolicy cmdlet, for example:

AllowBasicAuthActiveSync           : False
AllowBasicAuthAutodiscover         : False
AllowBasicAuthImap                 : True
AllowBasicAuthMapi                 : True
AllowBasicAuthOfflineAddressBook   : True
AllowBasicAuthOutlookService       : True
AllowBasicAuthPop                  : False
....

Tokens as Valid Credentials

In addition to having a user’s logon credentials, an attacker can steal valid authentication tokens, particularly the Primary Refresh Token (PRT)¹⁷, and use them to authenticate as the user. Once issued, a PRT is valid for 14 days and is continuously renewed as long as the user actively uses an Entra-joined device.

Additionally, in July 2023 Microsoft published information about an incident in which a stolen private signing key permitted Chinese-based threat actors to forge valid authentication tokens to access OWA and Outlook.com¹⁸ and access victim emails. While the circumstances of that breach required a remarkable combination of errors, it demonstrates that Microsoft services, and particularly EXO, are enduring targets of capable threat groups and new incidents of forged tokens could possibly arise.

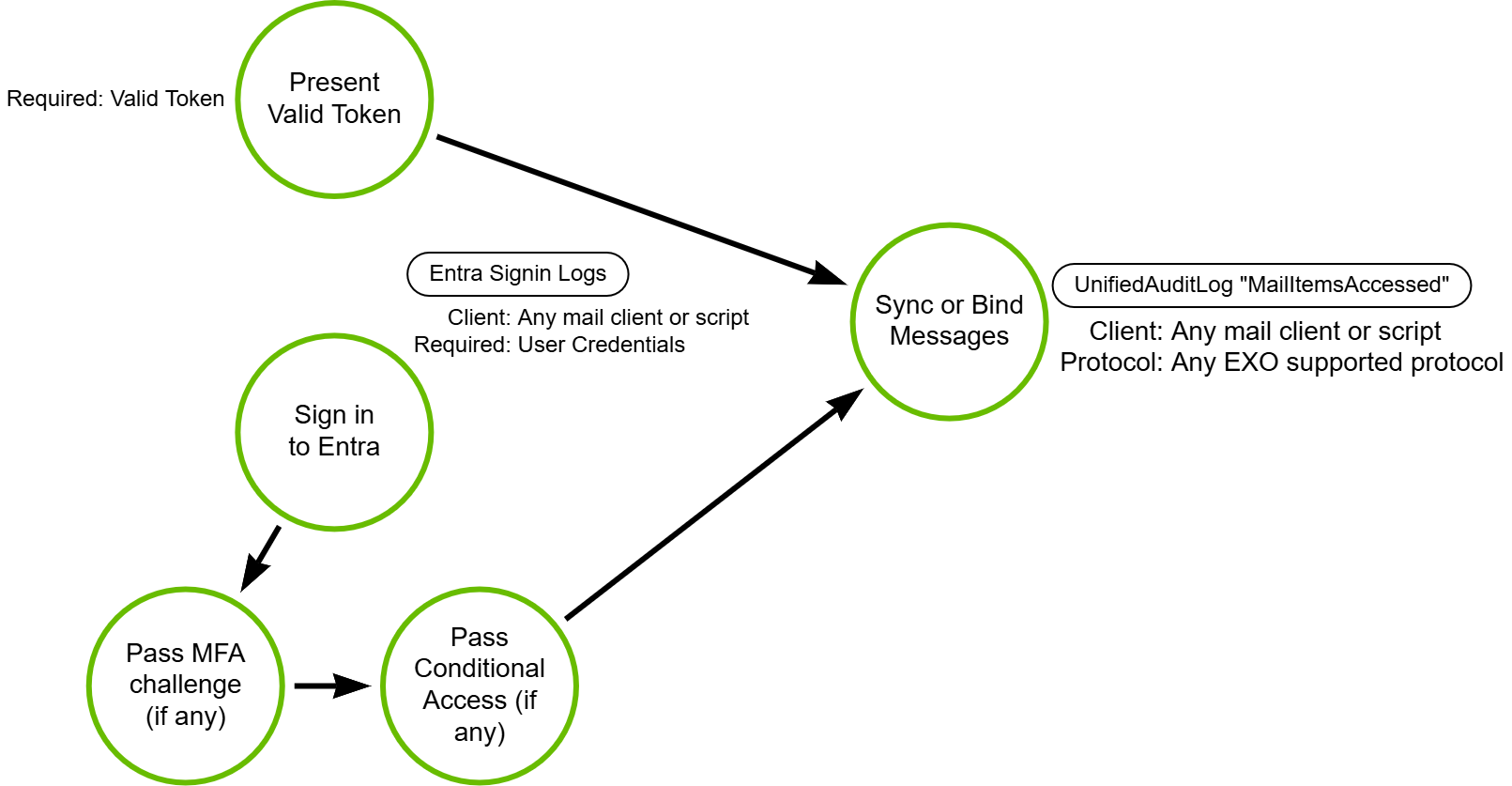

Detection Data Model

Using stole usernames and passwords became more difficult with the end of basic authentication because an attacker now needs to have the user’s credentials, pass any additional MFA challenges, and fulfill the organization’s conditional access policies (if any are defined). Stolen tokens are now probably the easiest way to execute this procedure.

Procedure B: API Access as an Application

An attacker can access an organization’s mailboxes by configuring an application with the necessary API permissions in the EXO tenant. As noted in the Application Roles section, with the retirement of basic authentication, all applications must authenticate through Entra ID, which means they must all be registered as an application in the Entra directory in order to access EXO data and resources. Applications can use either EWS or Graph to access all resources, and permissions can be assigned either in Entra or in EXO.

Detection Data Model

To execute this procedure, at attacker needs three things:

1. An Entra ID application
2. A client secret
3. Permissions to access mail via any available API and protocol (these permissions are listed in the Application Roles in EXO section above).

This could involve hijacking an existing application that already has the desired permissions or adding permissions to an application they control. They could also create a new application and add a secret and the requisite permissions.

In order to grant permissions, an attacker will need either an account that can grant admin consent (if using a permission control by Entra), or an EXO role with the Role Management permission (if using an EXO RBAC for Applications permission). Finally, they can access mail in the EXO tenant using either the EWS or Graph API (depending on the permission held). It is possible to use delegated permissions in this approach, but that would require the threat actor to have a target user’s credentials (and potentially pass an MFA challenge). It would be much easier for attackers going this route to use procedure A and authenticate with an existing mail client like OWA (which effectively already has delegated permissions)

When granting permissions to an application in Entra, the follow logs are relevant:

[!NOTE]

To grant a new RBAC for Applications permission to an application, the New-ManagementRoleAssignment PowerShell cmdlet is needed, and a log will be generated with the same name. However, if a management role assignment already exists, but is disabled or holds a limited scope, an attacker could modify that assignment using the Set-ManagementRoleAssignment cmdlet, which generates a Set-ManagementRoleAssignment log. This could allow an attacker to quietly expand or remove a limiting management scope.

Procedure C: eDiscovery

Exchange Online is integrated with Microsoft’s electronic discovery (eDiscovery) solution to facilitate identifying, retaining, and delivering information that can be used as evidence in investigations and legal cases. An attacker could use eDiscovery to either search every mailbox in the EXO tenant for specific interesting terms (like ‘credentials,’ ‘username,’ or ‘password’) or to bulk download messages from target mailboxes. Microsoft’s eDiscovery solution is accessed via the Microsoft Purview portal¹⁹, Microsoft Graph²⁰, or using the ComplianceSearch series of cmdlets in the ExchangeOnlineManagement module²¹. Attackers need the Discovery Management or Discovery Administrator EXO role or the Mailbox Search permission to create and access discovery (also called compliance) searches. Exporting the results requires the Export permission. For Graph they need the permissions eDiscovery.Read.All (to view existing search results) or eDiscovery.ReadWrite.All (to create new searches).

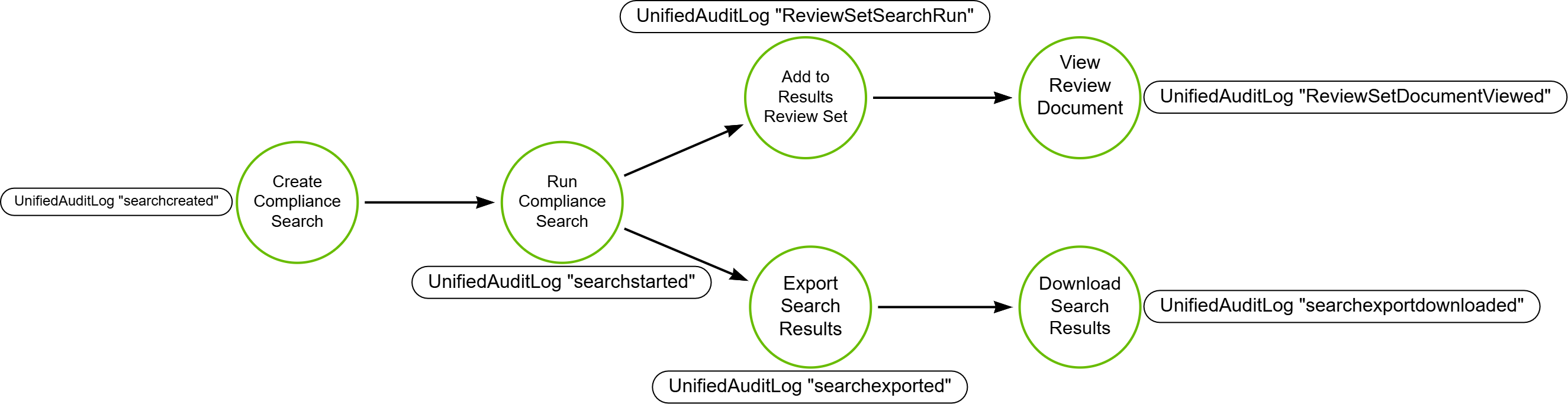

Detection Data Model

Exchange’s eDiscovery solution is fairly simple: you create a compliance search and define the parameters to be used to match messages. The search is then run and once it has completed, you can preview the results, add them to a review set, or initiate a bulk export. This enables attackers to extract messages across all mailboxes that might be of interest to them.

Microsoft’s eDiscovery solution uses ‘cases’ as an organizational construct, with each case containing ‘content searches’ (also called ‘collections’), ‘review sets,’ and ’exports.’ Items from content searches can be added to a review set to be reviewed directly, or they can be exported in bulk.

eDiscovery Logging

Microsoft’s eDiscovery for Microsoft 365 logs to the Unified Audit Log. Logs can be retrieved using Purview’s Audit search, PowerShell’s Search-UnifiedAuditLog cmdlet, or via the Office 365 Activity Management API (it’s one of the “General” workloads, with an AuditLogRecordType of “Discovery” or ID “24”²²).

The following events might be interesting for identifying efforts to use eDiscovery to collect and export emails:

[!WARNING]

When an email item is reviewed or exported using eDiscovery, there is no MailItemsAccessed log generated to show the access. The only record of this type of access is via the eDiscovery logs.

Procedure D: Delegation

EXO allows users to be granted access to other user’s mailboxes as ‘delegates.’ EXO supports 3 levels of delegated permissions:

A user must have the Mailbox settings permission (held by Organization Management and Recipient Management) to assign delegate access, and access must be assigned mailbox-by-mailbox. Below is an example of assigning Full Access rights using EXO PowerShell:

Add-MailboxPermission -Identity <targetmailbox> -User <delegateduser> -AccessRights FullAccess

[!NOTE]

EXO supports shared mailboxes to allow a group of people to monitor and send email from a common account (like support@company.org, for example). When someone sends a message from a shared mailbox, it looks like the message was sent from the group box, not the individual user. Creating a shared mailbox in EXO also creates an active user principal in the Entra directory with a system-generated, unknown password, and Microsoft recommends blocking sign-ins for the shared mailbox account.²³ Access to shared mailboxes is granted using delegated permissions.

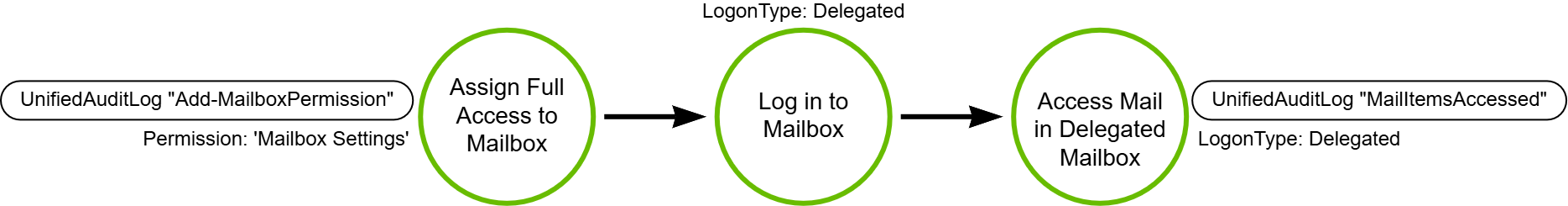

Detection Data Model

An attacker with sufficient permissions could grant delegated access for specific target mailboxes to an account in their control. They could then log in using delegated access to read or extract the victim’s emails.

Changes to mailbox delegate permissions are logged with the Add-MailboxPermission operation, and access to a mailbox is logged via the MailItemsAccessed operation (with a LogonType of delegated).

Procedure E: Export Mailbox

An attacker can use the Graph exportItems API²⁴ to export mailboxes from EXO. This API allows users to bulk export messages in full fidelity, which can later be imported into a new Exchange mailbox. The API uses the /admin/exchange/mailboxes/{mailboxId}/exportItems endpoint. It is also possible to submit the export requests via the Graph batch endpoint, which will accept up to 20 API requests in a single network request.²⁵

The export API uses a special mailbox identifier with the format of MBX:mailbox-exchange-guid@entra-tenant-id. The mailbox GUID for a given mailbox can be found using the Get-Mailbox cmdlet, it’s in the ExchangeGuid field. The API takes a list of up to 20 exchange ItemIds²⁶ (a lengthy unique id assigned to all items in Exchange) that will be returned individually in Microsoft’s proprietary “Fast Transfer Stream” (.fts) file format. These files can then be imported back into an Exchange instance (Server or Online) or converted to more common formats using something like Outlook Redemption.

This procedure requires the following Graph permissions to enumerate mailboxes for their ItemIds and export those items:

• MailboxItem.ImportExport (delegated) or MailboxItem.ImportExport.All (application)
• MailboxItem.Read (delegated ) or MailboxItem.Read.All (application)

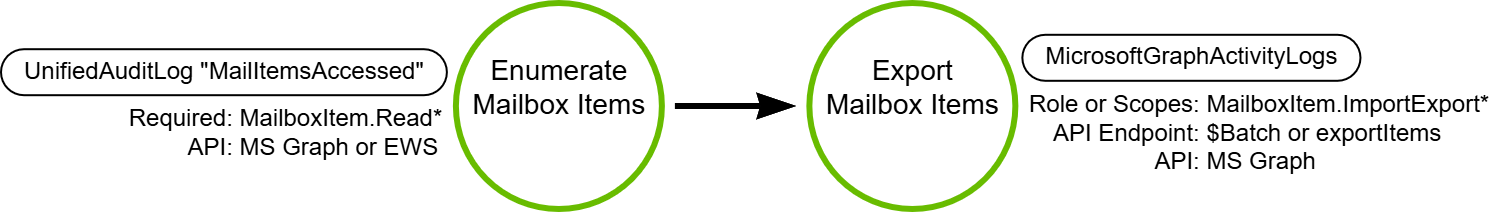

Detection Data Model

Due to the requirement to provide unique ItemIds for each item to be exported, an attacker first must enumerate the mail items in a victim’s mailbox. This can be done via Graph or EWS. They can then submit any portion of those to the exportItems API in batches of up to 20 items. They could also submit the export request to the Graph Batches API endpoint, which would allow retrieval of batches of up to 400 (20 items per request x 20 requests per batch).

The exportItems API is still in beta as of 6/25/2025. Access to mail items using the exportItems API generates a MailItemsAccessed log, and requests to the API can be identified using the MicrosoftGraphActivityLog²⁷. The log records requests to Graph API endpoints and the roles/scopes used in the request. An API request to the exportItems or $batch endpoints with the role or scopes of MailboxItem.ImportExport* indicate a probable export request. Requests with a large number of bytes sent in the response would be a strong indication of this procedure.

The MailboxExportRequest PowerShell Cmdlets

Attackers have frequently used the *-MailboxExportRequest cmdlets for Exchange Server (which use the Mailbox Import Export role) to collect email. These cmdlets are not supported in Exchange Online.²⁸ The Graph exportItems API provides equivalent functionality in EXO.
