TRR0020: Service Principal Manipulation

Metadata

Scope Statement

This TRR covers manipulation of a service principle for persistence in Azure, which corresponds to multiple subtechniques on the Mitre ATT&CK matrix and Microsoft’s Azure Threat Research Matrix (ATRM). The following techniques are addressed, as they pertain to Azure:

• AZT501.2 Account Manipulation: Service Principal Manipulation
• T1098.001 Account Manipulation: Additional Cloud Credentials
• T1098.003 Account Manipulation: Additional Cloud Roles

Technique Overview

Attackers can use Azure service principals to achieve persistent access to a compromised tenant. Those options include:

1. Adding new credentials to an existing service principal (T1098.001 & AZT501.2)
2. Adding an account they control as a new owner of a service principal. (AZT501.2)
3. Granting a service principal they control additional roles. (T1098.003)
4. Granting a service principal additional permissions.

Technical Background

Security Principals

To access resources that are secured by a Microsoft Entra tenant, the entity that requires access must be represented by a security principal. This requirement is true for both users (user principal) and applications (service principal). The security principal defines the access policy and permissions for the user/application in the Microsoft Entra tenant.

• User principals are the interactive users of the applications/resources in the tenant.
• Service Principals are the security objects that are assigned privileges, access policies, roles, etc, for an application in a single tenant. These account types provide a way for applications and services to authenticate and use resources without an interactive user account. Service principals are called “Enterprise Apps” in the Azure portal.

There are three types of service principal:

• Application - This type of service principal is the local representation, or application instance, of a global application object in a single tenant or directory. An application service principal is a concrete instance created from the application object and inherits certain properties from that application object.

• Managed identity - Managed identities provide an identity for applications to use when connecting to resources that support Microsoft Entra authentication, but eliminate the need for developers to manage credentials. When a managed identity is enabled, a service principal representing that managed identity is created in your tenant. Service principals representing managed identities can be granted access and permissions, but can’t be updated or modified directly.¹²

• Legacy - This type of service principal represents a legacy app, which is an app created before app registrations were introduced or an app created through legacy experiences. A legacy service principal can have credentials, service principal names, reply URLs, and other properties that an authorized user can edit, but doesn’t have an associated app registration. The service principal can only be used in the tenant where it was created.

Applications

Applications in Azure have two components:

1. An App Registration
2. A Service Principal (aka Enterprise Application)

An App Registration is how you register a new application with Azure; it is the global representation of your application in Azure across all tenants and is assigned a globally unique application object ID. You can configure details like the reply and logout URLs, define the application’s APIs, and add credentials for your application to use to authenticate. You also define the specific permissions that your application will need to use various Azure resources.

A Service Principal is the local representation of an application in a single tenant only. A service principal is created in each tenant where the application is used and references the globally unique app object. The service principal object defines what the app can actually do in the specific tenant, who can access the app, and what resources the app can access. When an application is given permission to access resources in a tenant (upon registration or consent), a service principal object is created.

An example helps illustrate this concept: ZScaler offers a “Private Access” (ZPA) product in Azure. The App Registration for ZPA exists in ZScaler’s own tenant. If you want to use the application in your tenant, you go to Enterprise Applications, create a new application, and select ZPA from the “Azure AD Gallery.” This will create a service principle for ZPA in your tenant and you will need to grant your consent for it to hold the application permissions that it requires (which were defined by ZScaler in the App Registration). You can then use ZPA in your tenant.

Azure Roles and Permissions

Azure permissions are assigned to principals using role-based access control (RBAC). There are two distinct RBAC systems operating inside an Azure tenant. All resources in Azure will be controlled by one or the other of these two RBAC systems. Roles for both RBAC systems can be assigned to any user, group, or service principal.

• Microsoft Entra ID roles (formerly Azure AD) control access to Microsoft Entra resources such as users, groups, and applications using Microsoft Graph. These permissions are usually granted tenant-wide, though they can be scoped to specific Entra resources or administrative units.
• Azure roles control access to Azure resources and the data in them, such as virtual machines or storage, using the Azure Resource Manager³. Azure roles are always scoped to a specific resource, subscription, or management group.

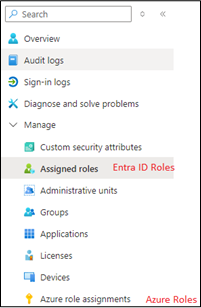

In the Azure portal, you can see these permissions in different blades (see image) on the profile for a user, group, or service principal.

Entra ID RBAC (formerly Azure AD)

Entra ID roles apply to directory resources like users, groups, domains, applications, licenses, synchronization settings, etc. Entra offers many built-in roles, plus the ability to create custom roles. At its core, a role assignment consists of three elements:

• Security principal - An identity that gets the permissions. It could be a user, group, or a service principal.
• Role definition - A collection of permissions.
• Scope - A way to constrain where those permissions are applicable.

Microsoft Entra ID provides multiple options for assigning roles:

• You can assign roles to users directly, which is the default way to assign roles. Both built-in and custom Microsoft Entra roles can be assigned to users, based on access requirements.
• You can create role-assignable groups and assign roles to these groups. Assigning roles to a group instead of individuals allows for easy addition or removal of users from a role and creates consistent permissions for all members of the group. Role-assignable groups requires a Microsoft Entra P1 or P2 license.
• You can use Microsoft Entra Privileged Identity Management (PIM) to assign members to roles. PIM allows you to grant time-limited or approval-based access to a role rather than permanent access. It also provides detailed reporting and auditing capabilities about when users enable their PIM-eligible roles.

Global Administrator is the most well-known built-in Entra ID role; this role is at the top of the Entra ID hierarchy. A Global Administrator in Entra can elevate themselves to the Azure RBAC User Access Administrator role over the tenant’s root management group (which is the top of the Azure RBAC hierarchy), allowing them to grant themselves access to any resource in the tenant.

Azure RBAC

Azure RBAC defines roles with common access needs that can be assigned to principals. Principals include users, security groups, managed identities, workload identities, and service principals. (Principals are created and managed in Entra.) You can assign a role to any principal. There are over 70 built-in roles, and it’s possible to define custom ones. However, there are 4 fundamental roles that apply to all resources:

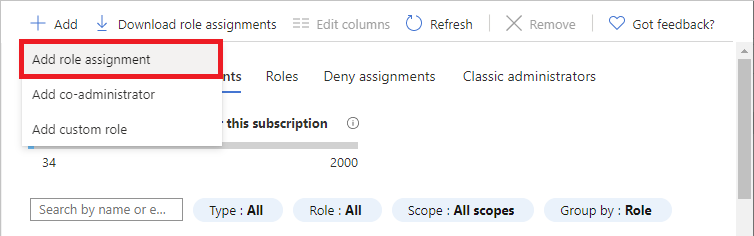

Azure roles are always scoped to a specific resource. In the Azure Portal, they are accessed by selecting a resource and choosing the “Access Control (IAM)” blade. There you can see the roles defined for the resource and the principles (users, assignable groups, and applications) who are assigned those roles. Because permissions are inherited from parent resource groups and subscriptions, the highest level of access in Azure RBAC is Owner or User Access Administrator on the Root Management Group (the latter can grant themselves the former). However, the Entra ID Global Administrator role can grant itself the Owner role on any resource, so it also controls the whole tenant. Likewise, any account with the control plane action Microsoft.Authorization/*/Write (which is held by the User Access Administrator) could grant themselves permissions to any resource within the scope where the permission is granted.

Each Azure role defines a set of permissions that are granted or denied to the role. These are listed as Actions and NotActions. You can see a role definition with AZ Powershell by using the cmdlet get-azroledefinition. Azure separates permissions for control plane actions from data plane actions. Control plane actions are things like managing access to a storage account, or creating a blob container, key vault, or resource group. Data plane actions are things like reading or writing blobs in a container or reading a key in a key vault.

By way of example, here is the definition for the role Storage Blob Data Reader, which has rights to both read the containers (control plane), and also to read the blobs inside the container (data plane):

{
  "Name": "Storage Blob Data Reader",
  "Id": "2a2b9908-6ea1-4ae2-8e65-a410df84e7d1",
  "IsCustom": false,
  "Description": "Allows for read access to Azure Storage blob containers and data",
  "Actions": [
   "Microsoft.Storage/storageAccounts/blobServices/containers/read",
   "Microsoft.Storage/storageAccounts/blobServices/generateUserDelegationKey/action"
  ],
  "NotActions": [],
  "DataActions": [
    "Microsoft.Storage/storageAccounts/blobServices/containers/blobs/read"
  ],
  "NotDataActions": [],
  "AssignableScopes": [
   "/"
  ]
}

Procedures

Procedure A: Add credentials

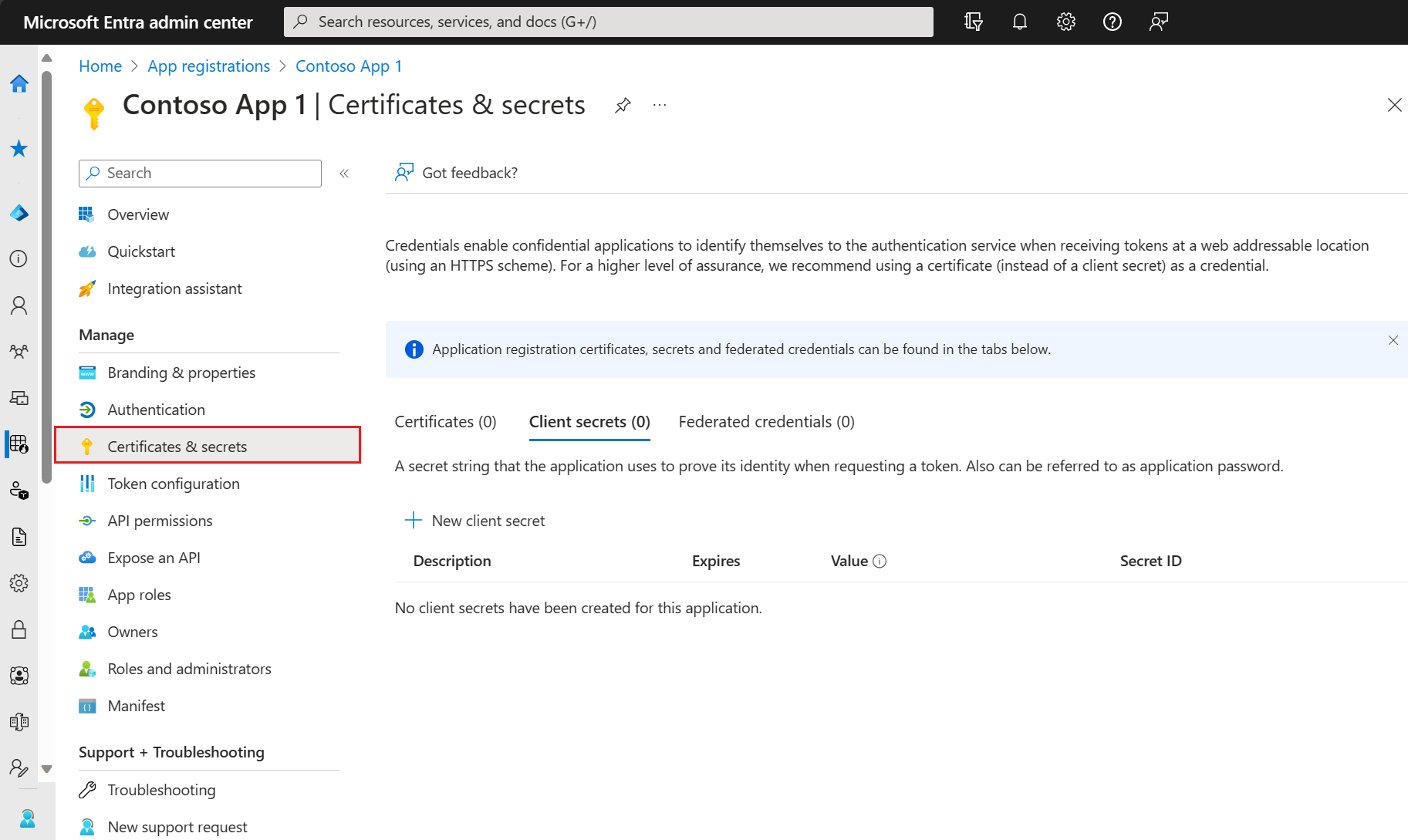

An attacker can gain persistence in a compromised Azure tenant by adding new credentials to a service principal with the permissions the attacker is interested in retaining. Adding credentials known by the attacker would allow them to authenticate as that service principal until those credentials are revoked.

Credentials can be certificates, client secrets (a string), or federated identity credentials.

• Certificates are the recommended credential type. You can add the public key to app registration, and then configure the application manifest to use the certificate to authenticate. Microsoft recommends using certificates from a trusted certificate authority, but this is not required.
• Client secrets are also sometimes called application passwords. Microsoft recommends client secrets for development, but not for production applications. When a client secret is created, Azure generates a string value that the application can provide with a request to authenticate itself. Anyone who has the secret can authenticate as the application. Azure will only show the secret once – when it is first created – and after that the secret value cannot be retrieved. It can, however, be stolen from the application.
• The third option for authenticating applications is a federated credential. Azure supports GitHub, Kubernetes, customer-managed keys, or an external OpenID Connect provider.⁴⁵

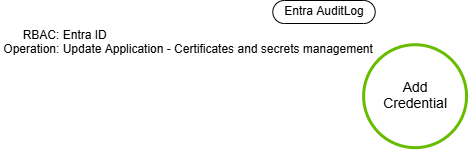

Detection Data Model

Adding credentials to a service principal name (SPN) as a user requires a role with the Microsoft.Directory/servicePrincipals/credentials/update permission in Entra. To add credentials as an application, one of the Application.ReadWrite* Graph permissions is required. There are many options for how to do it, including Powershell (New-AzAdSpcredential), the Graph API⁶, or the Azure portal. There is one relevant Entra Audit log generated: “Update Application - Certificates and secrets management.”

Procedure B: Add owner

An attacker can establish persistence by adding themselves as an owner to an existing application. They can be owners of both the service principal or the application registration.

An attacker is most likely to add themselves as an additional owner of an application that already holds permissions they want in the tenant, but as an owner they can also add new permissions to any application (though admin consent would be required). They can also manage the tenant-specific configuration of the application, such as the single sign-on (SSO) configuration.

Ownership grants an adversary permissions to carry out other account manipulation procedures, like adding roles, permissions, or credentials. Some of the permissions held by owners over an application registration that would be useful to an attacker are:

Similarly, attackers would find the following permissions held by owners of enterprise applications useful:

Detection Data Model

Adding an owner to an SPN or application requires a role with the Microsoft.Directory/servicePrincipals/owners/update or Microsoft.Directory/applications/owners/update permissions in Entra. To add an owner as an application, one of the Application.ReadWrite* Graph permissions is required. There are many options for how to do it, including the AZ command line interface⁷⁸, the Graph API⁹, or the Azure portal. There are two Entra Audit logs generated: “Add owner to application” or “Add owner to service principal.”

Procedure C: Add role

Attackers can establish persistence by granting additional privileged roles to an attacker-controlled service principal. These roles could be assigned in both Entra or Azure RBAC.

Privileged Roles

Privileged roles are those that grant administrative access, such as the ability to manage Azure resources or assign roles to other users. The following Azure roles are considered privileged and apply to all resource types.

These specific Azure permissions are considered privileged, regardless of the role holding them:

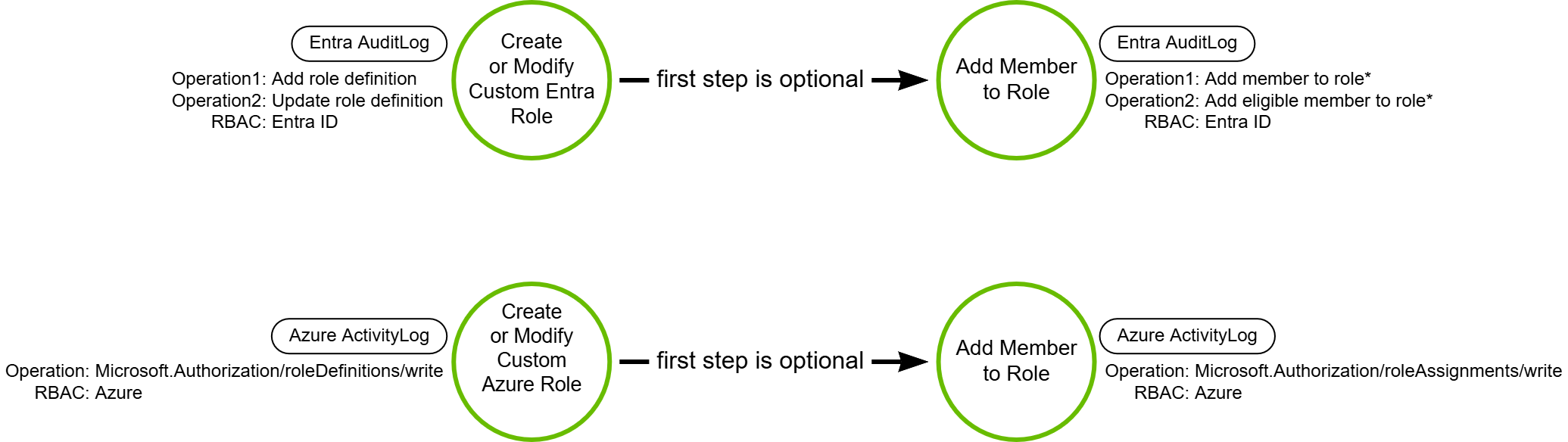

Detection Data Model

Changes to Entra ID objects, including adding or removing roles, are logged in the Azure Audit Log. The Entra logs that are most relevant to this technique are:

Changes to Azure resources, including adding or removing roles, are logged in the Azure Activity Log. These are the RBAC-related operations that get logged (under the Category “Administrative” with the operationName “Authorization”):

Procedure D: Add API permissions

An attacker can establish persistence by granting additional API permissions to an application they control. Changes to an application’s permissions must be approved through consent.

Granting Permissions to Applications

Applications request specific permissions in the tenant and must be granted these by user or admin consent. Each permission includes a claim (User.Read, User.Write, etc) against an API (Microsoft Graph, Azure Resource Management, Windows Azure Active Directory, etc).

There are two scopes for which a permission can be requested: Application and Delegated.

Application Permissions

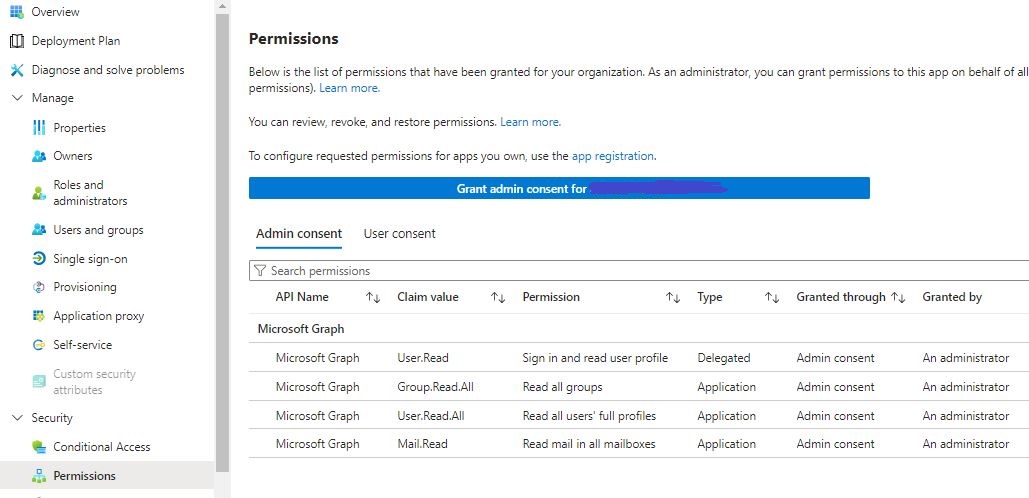

Application permissions are used by apps that run without a signed-in user present, for example, apps that run as background services. These permissions are held directly by the application and apply to all relevant resources in the tenant. For example, an app that has the Mail.Read permission can read the mailboxes of every user in the organization.

• For application permissions, the effective permissions of the app are the full level of privileges granted by that permission. Application permissions are also called “App-only permissions” (in documentation), “AppRoles” (in the application manifest, logs and the Graph API) and “roles” (in the requiredResourceAccess section of the application manifest and OAuth token). The permissions an application requires can also be seen in the “API Permissions” blade of the App Registration.
• Application developers can define the roles exposed by their application using either the “Manifest” or the “App roles” blade in the portal or by adding an appRoleAssignment programmatically. When a user signs in to the application, Entra ID adds a roles claim to the OAuth token they receive for each role that the user or service principal was granted to the resource they’re authenticating to. These can then be used by the application to implement claim-based authorization (i.e. granting access based on a user’s role claims).

Delegated Permissions

Delegated permissions are used by apps that have a signed-in user present. They grant the application the ability to exercise the requested permission on behalf of the user. The app is delegated with the permission to act as a signed-in user when it makes calls to the target resource. For example, an app with a Mail.Read delegated permission can read the mailbox of the signed-in user only.

For delegated permissions, the effective permissions of your app are the least-privileged intersection of the delegated permissions the app has been granted (by consent) and the privileges of the currently signed-in user. Your app can never have more privileges than the signed-in user. For example, if a signed-in user doesn’t have rights to read their own mailbox, then an application with the Mail.Read delegated permission will not have permission to read the user’s mailbox.

• Delegated permissions are also called “scopes” (in documentation, the requiredResourceAccess section of the application manifest, and the OAuth token) and “OAuth2 permission scopes/grants” (in logs, the application manifest, and the Graph API)
• Application developers can define the delegated permissions exposed by their application using either the “Manifest” or the “Expose an API” blade in the portal or by adding an oauth2PermissionGrant programmatically. When a user signs in to the application, Entra ID adds an scp claim to the OAuth token they receive for each scope that the user or service principal was granted to the resource they’re authenticating to.

Consent

Consent is a process where users or admins authorize an application to access a protected resource. Consent can be granted by individual users for their own data (delegated) or by an administrator for tenant-wide permissions (application or delegated).

User consent

User consent happens when a user attempts to sign in to an application and grants that application delegated permissions to access specific resources as the user. The user provides their sign-in credentials, which are checked to determine if consent has already been granted for the requested permissions. If no previous record of user or admin consent for the permissions exists, the user is shown a consent prompt and asked to grant the application the requested permissions. For specific permissions, an admin may be required to grant consent on behalf of the user. Once a user has consented to delegated permissions for an application, they don’t have to grant it again for the same application.

Administrator consent

Administrators can grant consent for delegated permissions for specific users or for an entire organization. Applications can also be pre-authorized for permissions so that users don’t see a consent prompt when they first use the application. Application permissions can only be granted by admin consent. Additionally, depending on the permissions they require, some applications might require an administrator to be the one who grants consent, even for a single user. For example, many high-privilege delegated permissions can only be consented to by an administrator (see Risky Graph Permissions below). Authentication requests are prompted for admin consent if consent wasn’t granted and if one of those high-privilege permissions is requested. Global Admin, Privileged Role Admins, Application Admin, and Cloud Application Admins all have permission to grant tenant-wide consent (but only the first two can consent to Graph API permissions)¹⁰. Additionally, custom roles that hold the permission microsoft.directory/servicePrincipals/managePermissionGrantsForAll can grant admin consent.¹¹

Bypassing Consent

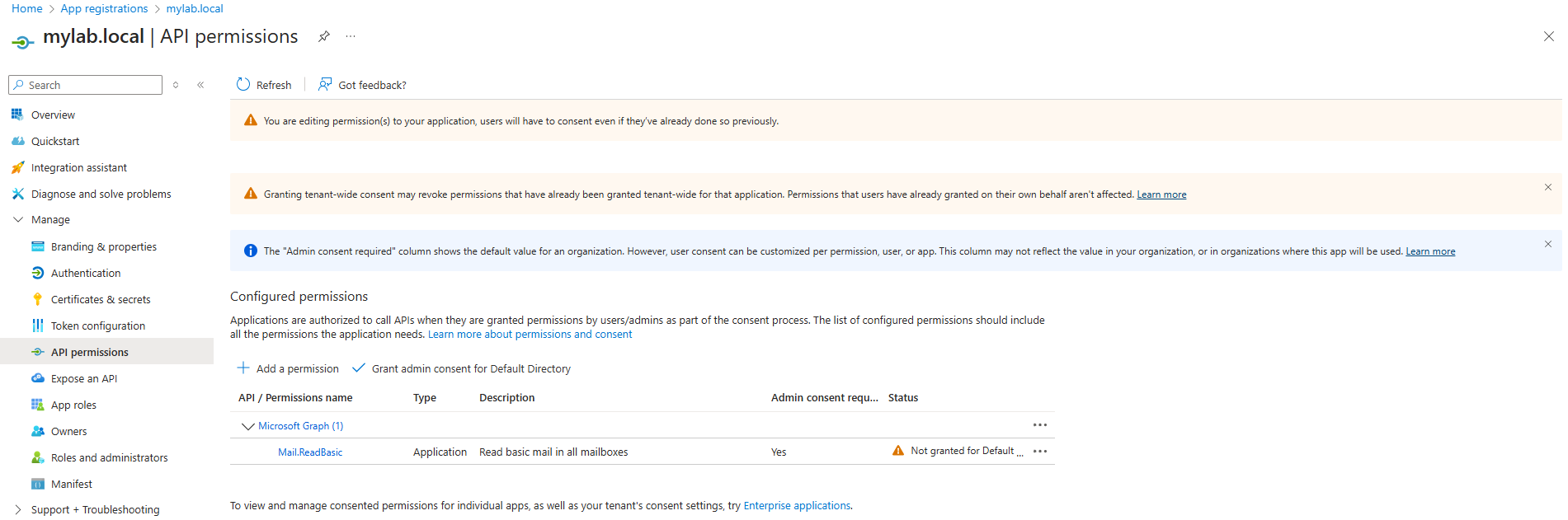

Generally, granting permissions to an application within a tenant always requires that consent be granted by a human admin. There is one method that allows consent to be bypassed: an application holding the AppRoleAssignment.ReadWrite.All can grant itself or any other application any application permission to any API, including Microsoft Graph, without the normally required admin consent process. By way of example, an application with this permission could escalate to Global Admin without consent by granting itself RoleManagement.ReadWrite.Directory and Global Admin, in turn.¹²

Risky Graph Permissions

The following Graph permissions are more likely to be targeted by attackers because they permit access to files, contacts, notes, mail, or the ability to make sensitive changes to permissions. The addition of these permissions to an application or role – or the addition of a role containing these permissions – would be interesting from a security perspective. The full list of Graph permissions and whether they require admin consent can be found in the Graph Permissions Reference.¹³

• Application.ReadWrite.All
• AppRoleAssignment.ReadWrite.All
• Contacts.Read
• Contacts.ReadWrite
• Directory.ReadWrite.All
• Domain.ReadWrite.All
• Files.Read.All
• Files.ReadWrite.All
• Group.ReadWrite.All
• Mail.Read
• Mail.ReadWrite
• Mail.Send
• MailboxSettings.Read
• MailboxSettings.ReadWrite
• Member.Read.Hidden
• Notes.Read.All
• Notes.ReadWrite.All
• People.Read.All
• RoleManagement.ReadWrite.Directory
• User.ReadWrite.All
• User.ManageCreds.All

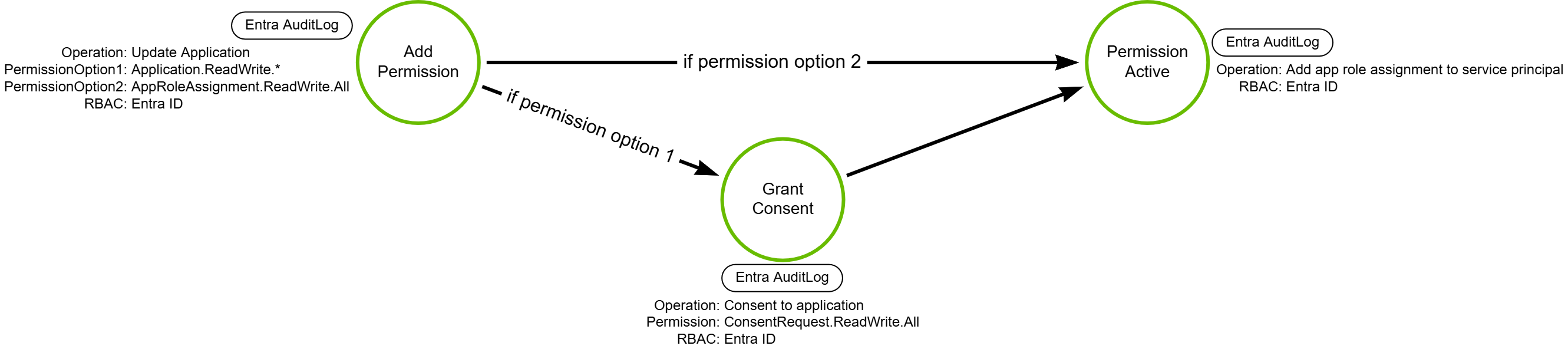

Detection Data Model

To add a new API permission, there are two options: via consent or bypassing consent. The permissions required differ per approach. When a new permission is added, Entra logs an Update Application log with a change to the RequiredResourceAccess field (this is the section that declares the permissions required for an application). When consent is granted, there is a Consent to application and Add app role assignment to service principal log generated.

The DDM focuses on application permissions rather than delegated permissions because to abuse delegated permissions an attacker must be able to sign a user in to the application in order to access their data, including passing all MFA and Conditional Access checks, even after they’ve granted and consented to the permission in Entra. This makes application permissions considerably easier to abuse. In Azure logging, delegated permissions are called an OAuth2PermissionGrant and application permissions are called an appRoleAssignment.

Available Emulation Tests

References

• Overview of Permissions and Consent - Microsoft Learn
• Application and service principal objects in Microsoft Entra ID
• Graph Permissions Reference - Microsoft Learn
• Azure Privilege Escalation via Azure API Permissions Abuse - SpecterOps
• Default User Permissions in Entra ID - Microsoft Learn
• User and Admin Consent - Microsoft Learn
• Grant Tenant-Wide Admin Consent - Microsoft Learn
